Product detailed description

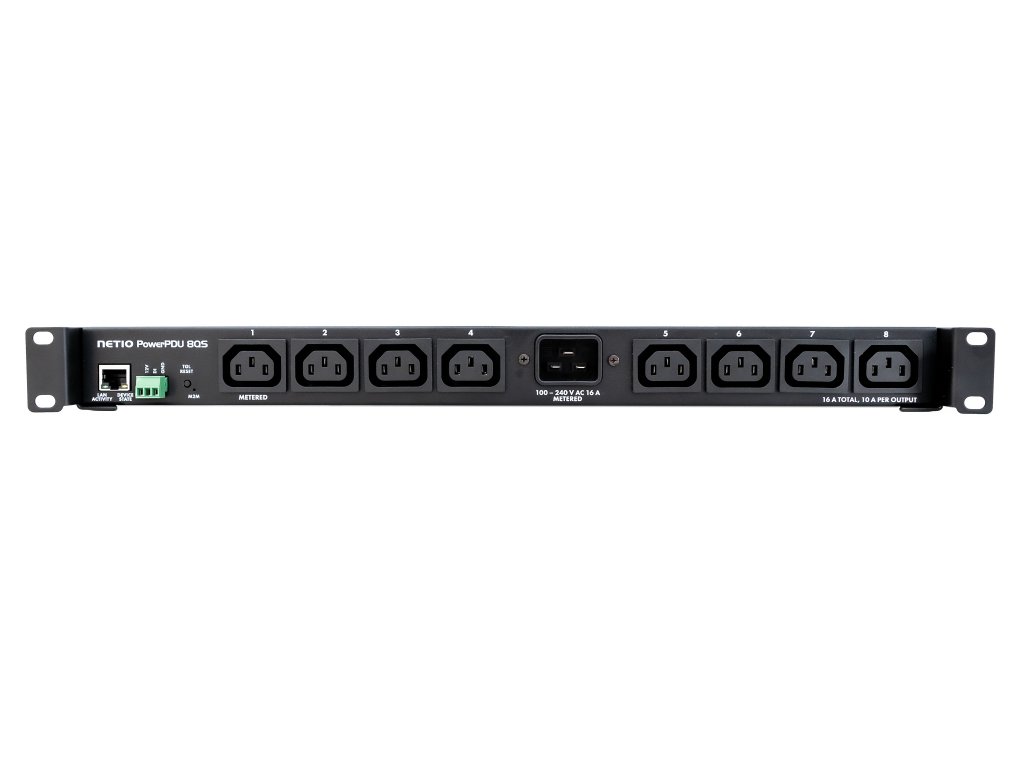

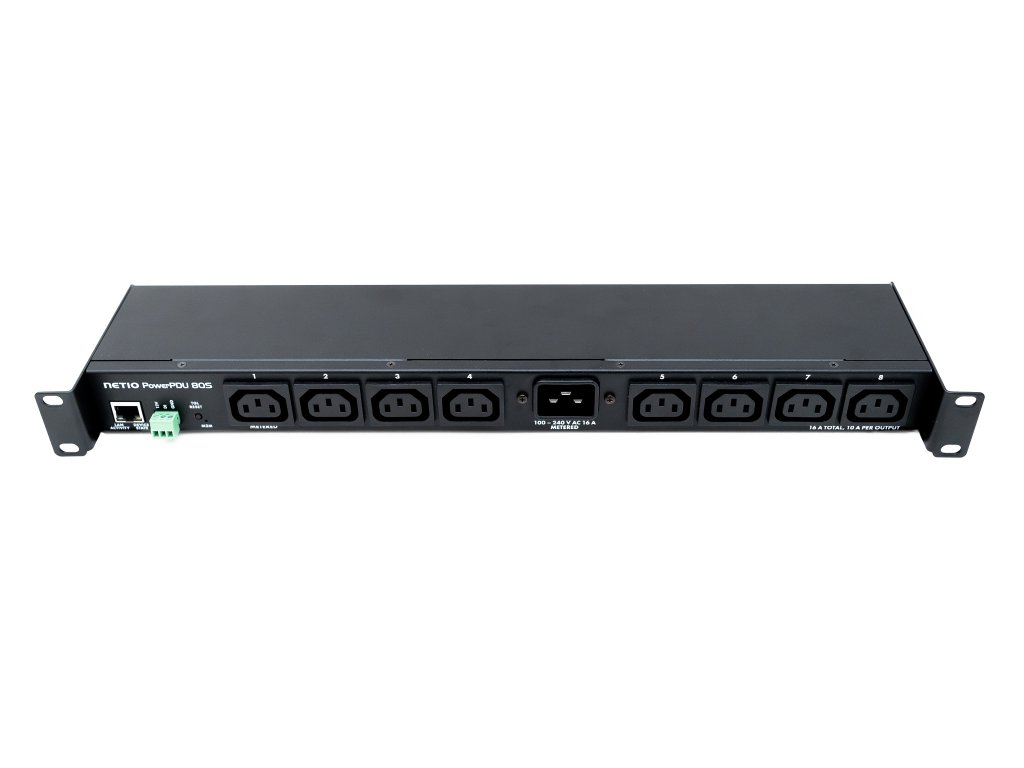

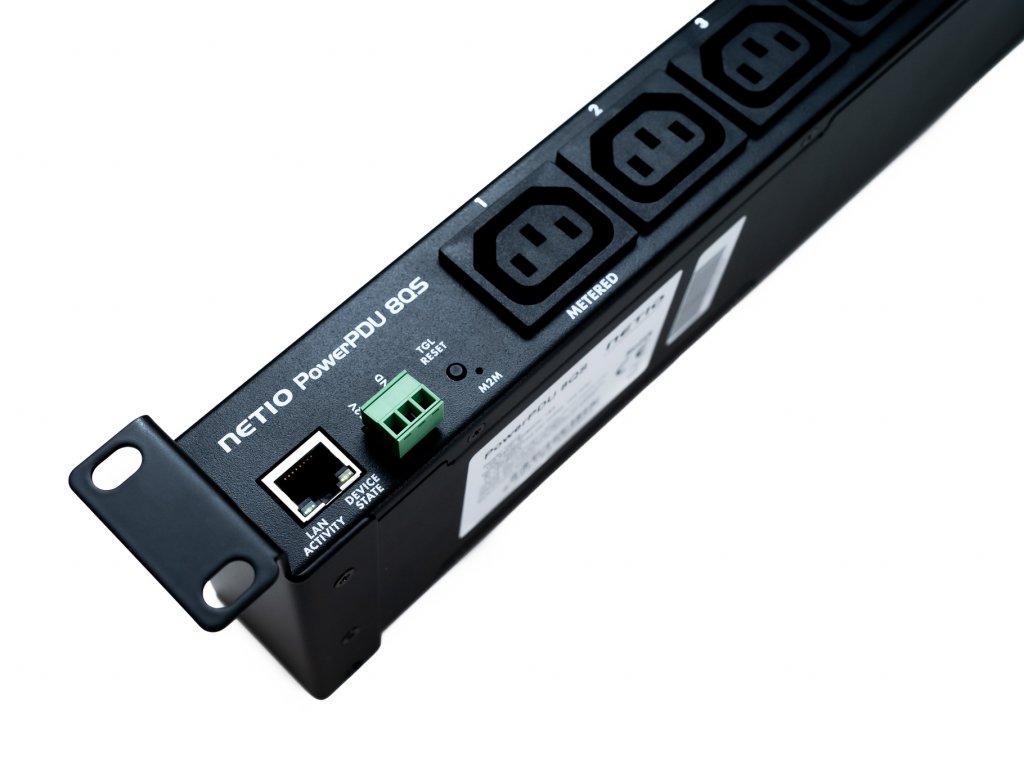

NETIO PowerPDU 8QS is a PDU (Power Distribution Unit) with eight power outputs (8x IEC-320 C13) controlled and metered over a LAN. It fits into a 19” cabinet (1U). Each output can be controlled independently. PowerPDU 8QS supports two channels for electrical measurements: the PDU as a whole (all outputs combined), and the first output separately (Output1). A digital input (DI) can be used to control the outputs or read S0 pulses (electricity meter output).

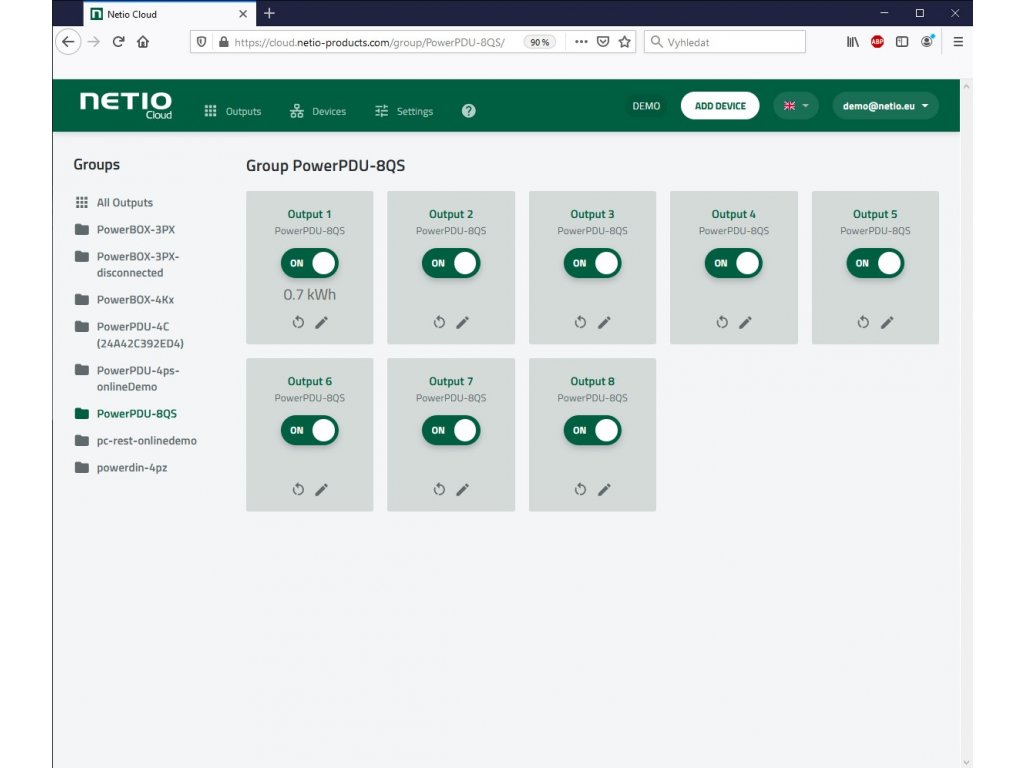

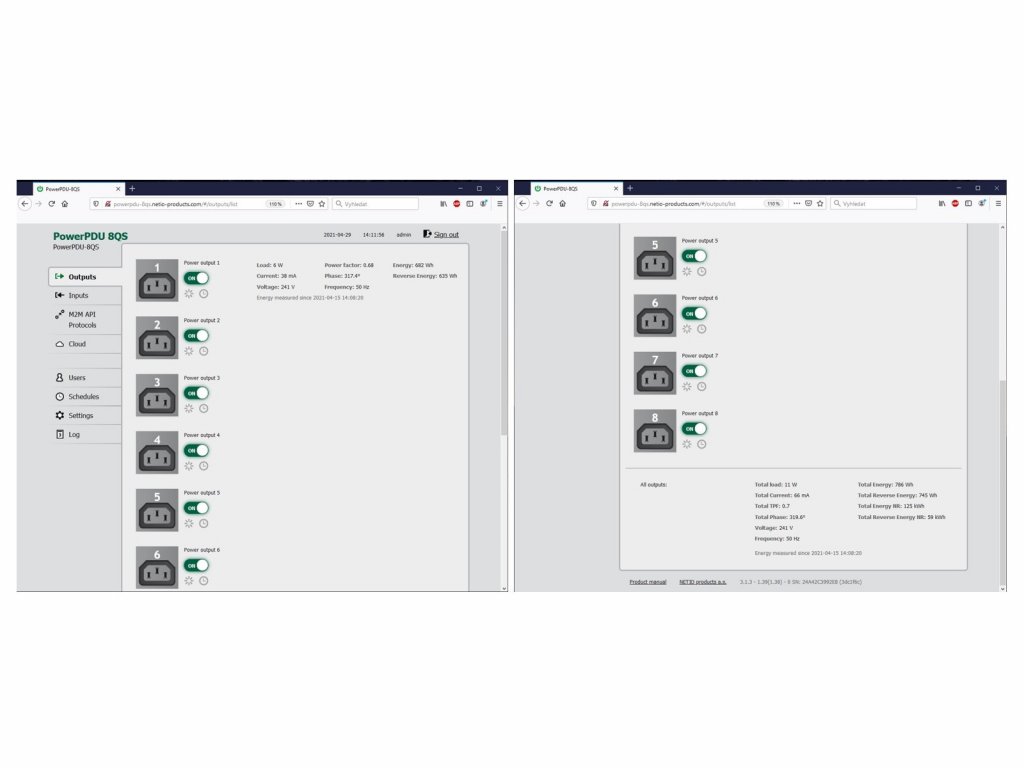

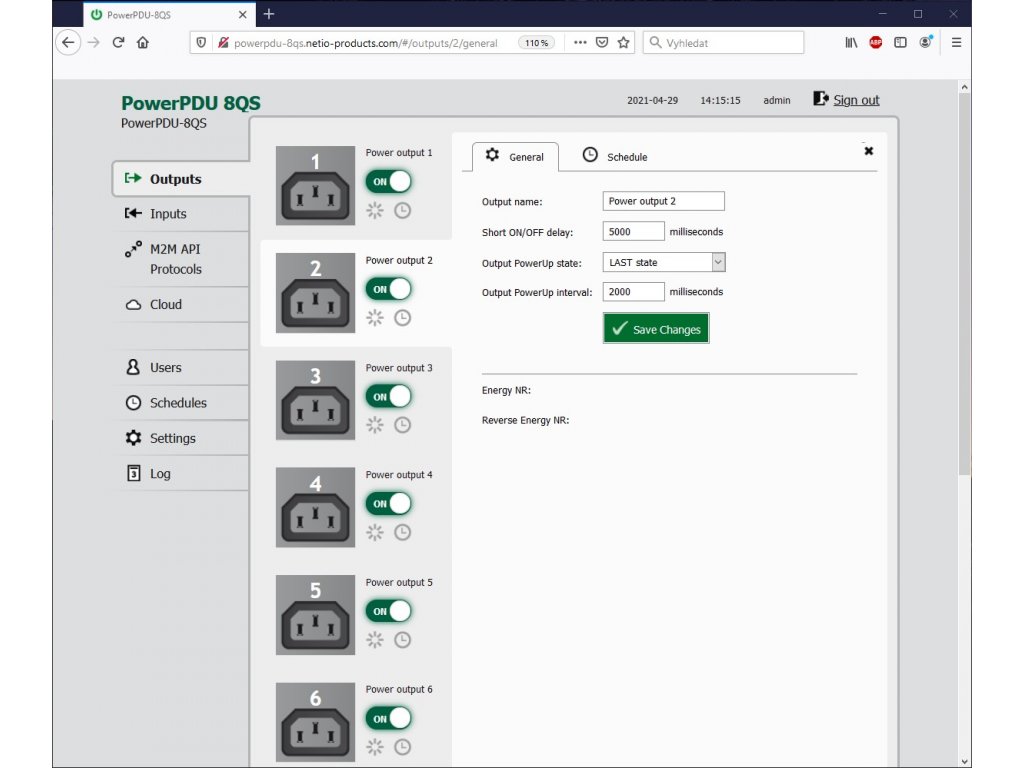

The device’s WEB interface can be used to control the outputs, configure the Scheduler for each output, and so on. With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service is provided for a fee, features SSL security and its servers are located in Europe.

Open API enables integration into third-party systems using a wide range of protocols (JSON, Modbus/TCP, SNMP, MQTT, Telnet, ...). NETIO PowerPDU 8QS can be controlled from multimedia AV systems (Crestron, RTI, Control4, …)

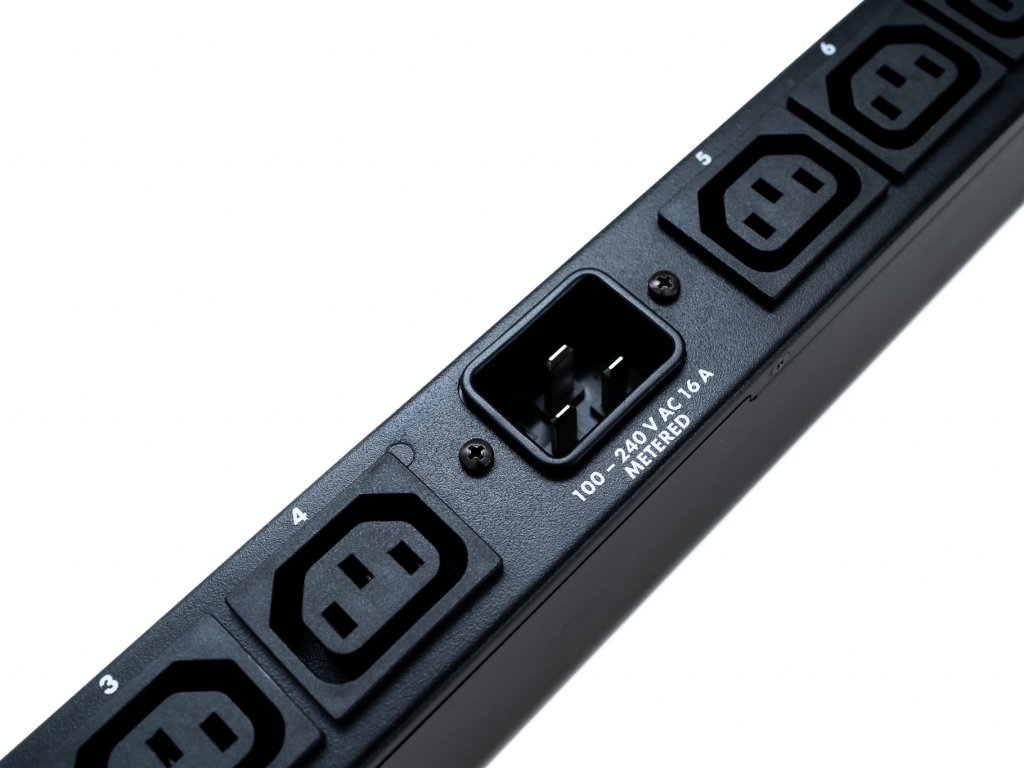

• Power input:           1x IEC-320 C20, 110/230V (16A)
• Power output:           8x IEC-320 C13 (max 10A / output)
• Energy metering: Yes (Total + Output 1)
• Each output can be switched on/off individually over the web
• ZVS – Zero Voltage Switching for each output
• Mobile app:                    NETIO Mobile2 (Android)
• Cloud service: NETIO Cloud (with TLS security)

 Video Flyer

Use cases for the remotely controlled PDU

• Restart over the Web
• Energy savings (switching on/off at specified times)
• Switching electrical outputs on/off with a mobile app
• Power output switching and measurements using NETIO Cloud
• Measuring the consumption history of the powered devices
• Controlling the power (to TV sets, audio systems, lighting) from various AV systems in stores, smart homes, museums

Open API

The NETIO PowerPDU 8QS smart PDU supports measurement and control over the web. For Open API communication, M2M protocol can be chosen from among the following:

• SNMP v1 / v2
• SNMP v3
• MQTT-flex (plain / TLS)
• Modbus/TCP
• Telnet
• URL API (http get)
• JSON over HTTP
• XML over HTTP
• HTTP(s) Push JSON
• HTTP(s) Push XML

The SNMP protocol can be always used in parallel to other APIs.

Documentation for the protocols is available at the manufacturer’s website. The ANxx Application Notes provide useful deployment guidance.

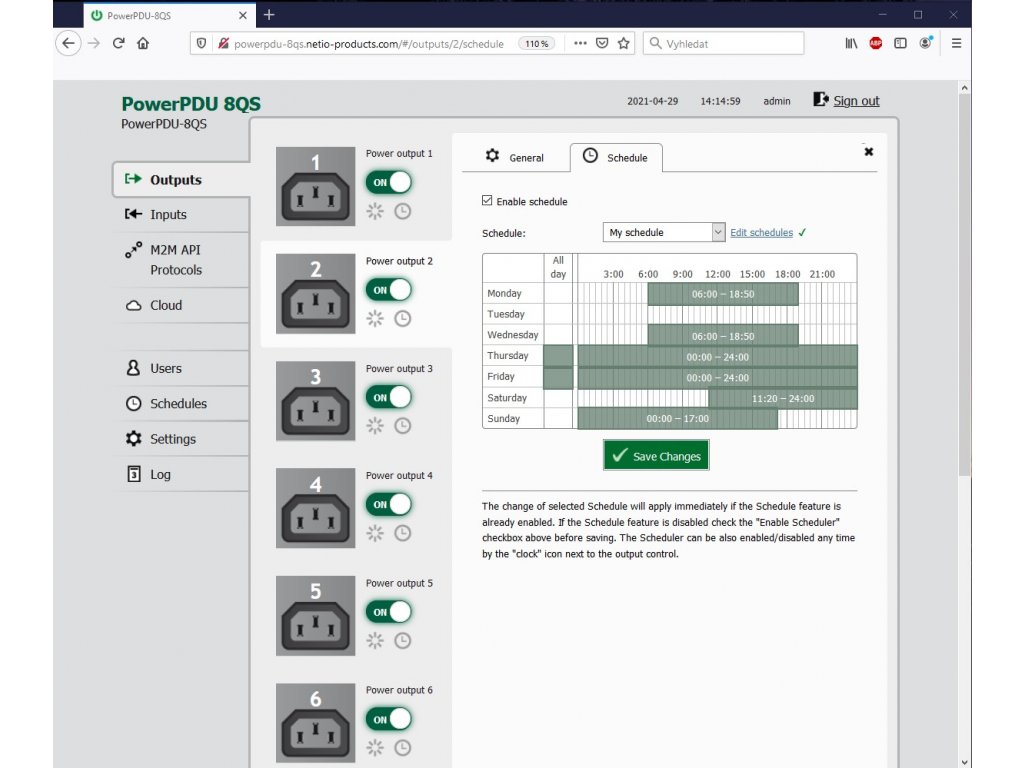

Scheduler (weekly timer) can switch each output on/off at pre-defined times and days of week.

PowerUp sequence delays the switching on of each output by a defined delay after the device is powered up.

Electrical measurements for two channels: the PDU as a whole, and output 1 separately (All Outputs + 1). For both channels, the direction is taken into account when metering: there is a kWh counter for consumed energy and another kWh counter for reverse (supplied) energy.

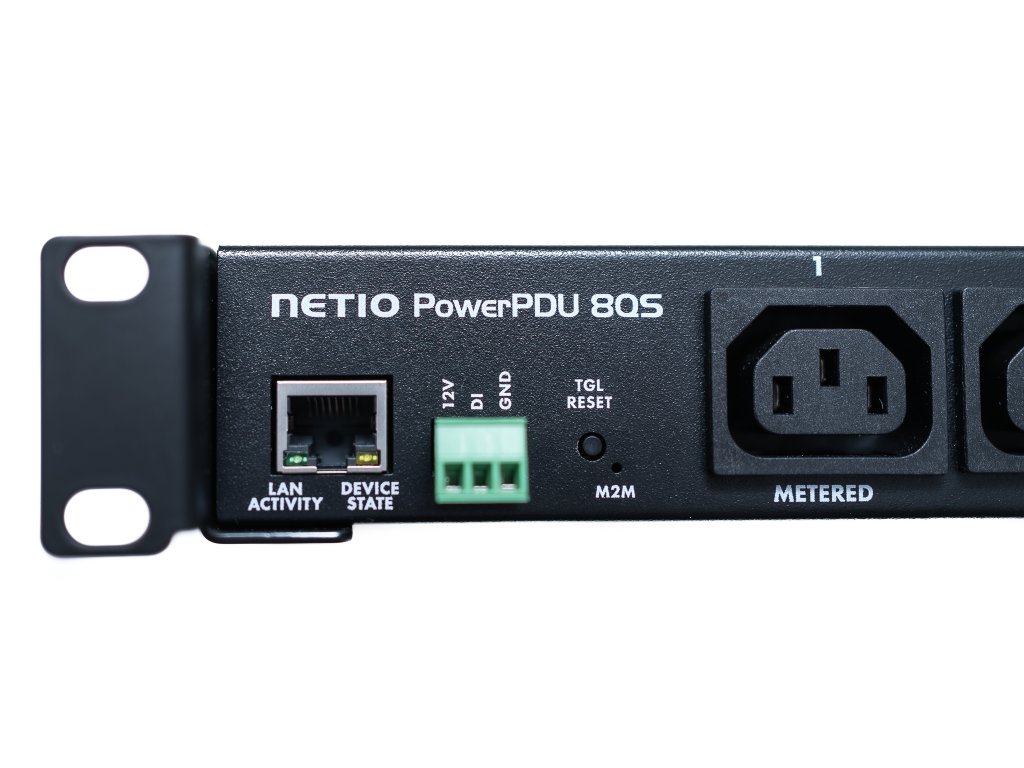

The digital input (DI) can be connected to a button (dry contact) or used as a S0 pulse counter for reading energy consumption from an external electricity meter.

Professional product

• Fits into a 19” cabinet as a 1U device
• Input current up to 16A (output current max 10A / output)
• PDU (Power Distribution Unit) with 8 independent outputs
• Wide operating temperature range
• Very low internal power consumption
• Accurate electrical measurements, each unit is factory-calibrated.
• PowerUp state – states of outputs after the device is powered up are configurable (On/Off/Last). A PowerUp delay can be configured for each output.
• ZVS (Zero Voltage Switching) support is important when the connected equipment is switched on/off frequently (several times a day).
  ZVS extends the lifetime of equipment with a high inrush current.

AV drivers

• BrightSign: free plugin AN47
• CONTROL4: free driver to control outputs
• CRESTRON: free driver to control outputs
• ELAN: free driver to control outputs
• KRAMER: free driver to control outputs
• Neets: free driver AN44
• RTI: free driver to control outputs
• SAVANT: free driver to control outputs


• LOXONE: example AN53
• Home Assistant: drivers by community
• OpenHAB: drivers by community

 Specifications

• LAN (RJ45): Yes
• WiFi: No
• Web: Built-in web server
• Online demo: Yes
• FW upgrade: Yes - web
• Mobile app: NETIO Mobile2 (Android)
• Cloud connection needed for installation: No
• Control button for each output: No

• Cloud service: NETIO Cloud (for a fee, SSL security)
• M2M API protocols:
  • JSON over HTTP (default)
  • MQTT-flex (MQTT extension, supports SSL)
  • SNMP v1
  • SNMP v3
  • Modbus/TCP
  • XML over HTTP
  • URL API (http get) (control of outputs only)
  • Telnet (control of outputs only, backwards compatible with KSHELL)
  • HTTP(s) Push JSON
  • HTTP(s) Push XML

• Lua support: No
• Scheduler function (weekly calendar): Yes
• IP WatchDog function: No
• Sending e-mails: No

• Power input: IEC-320 C20, 110/230V (max. 16A)
• Mechanical power switch: No
• Power output: 8x IEC-320 C13 (max 10A / output)
• Number of controlled outputs: 8
• LED indication of output states: No
• Electrical measurements: Yes
• Number of channels for measurements: 2 (All Outputs + output 1)
• Parameters measured for the whole device: Grid frequency [Hz], Voltage [V], Total current [A], Total power input [W], Overall TruePF [-]), Overall phase shift [°] / Total Energy [Wh] / Total reverse energy [Wh],
• Parameters measured for output 1: Current [A] / Power input [W] / TruePF [-] / Phase shift [°] / Energy [Wh] / Reverse energy [Wh]

• Accuracy of electrical measurements: better than 1% (in the entire temperature range)
• Internal consumption: 1-3 W
• Digital inputs (DI): 1x input (contact) + S0 counter (4 bytes)
• Power for DI: 12V power (Max 50mA)

• SPD – surge protection: Yes, type 3 (125J (8/20us))
• Switching element: relay SPST-NO, ZVS
• ZVS (Zero Voltage Switching): Yes
• IOC (output state independent from FW updates): Yes
• PowerUp state of outputs: On / Off / LAST state

• Dimensions: 439 x 41 x 90 mm
• Mechanical mounting: 19“ (1U) rack mount
• Ingress protection: IP30
• Sound output: No
