    PowerBOX 3Px: professional power strip with Open API

    Code: 8594185580621 8594185580614 8594185580638 Choose variant
    PowerBOX 3Px iFL 43 en
    €229 / pcs €229 / pcs €245 / pcs from €229 / pcs €277,09 incl. VAT €277,09 incl. VAT €296,45 incl. VAT from €277,09 incl. VAT
    On request In stock (>10 pcs) In stock (>10 pcs) Choose variant
    Variant
    Delivery to:
    - 12/12/2024 12/12/2024 Choose variant

    NETIO PowerBOX 3Px features 3 electrical sockets connected to a LAN. Each socket can be individually switched on or off over the web interface.

    Open API enables integration into third-party systems using a wide range of protocols (JSON, Modbus/TCP, SNMP, MQTT, Telnet, ..).

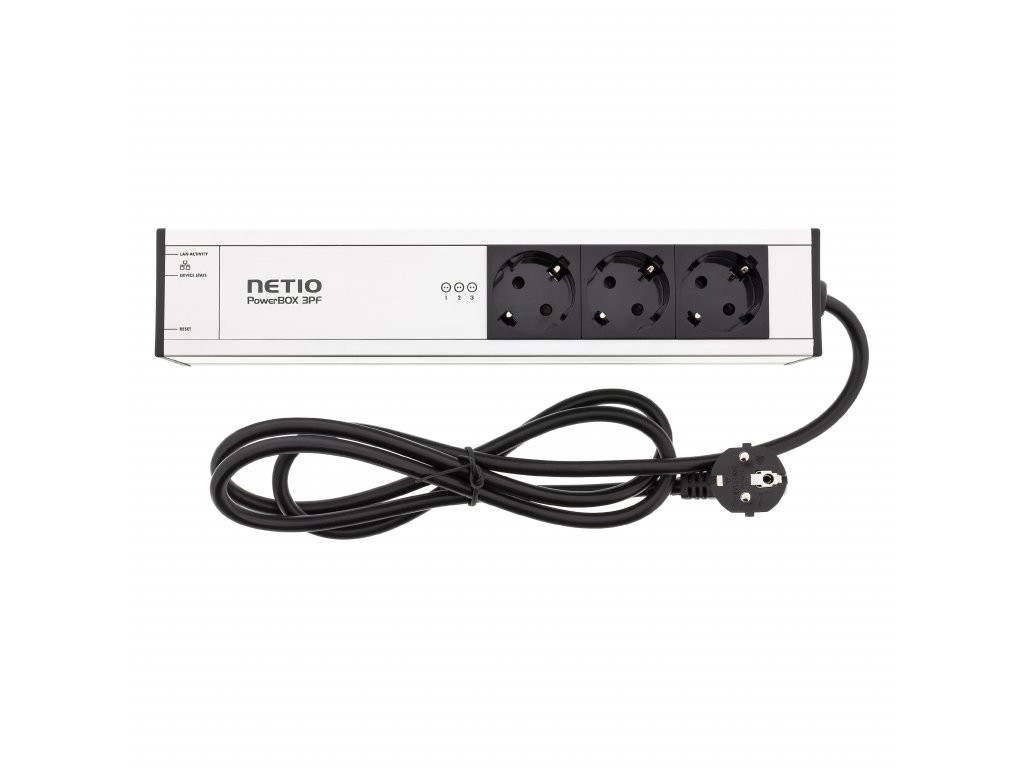

    NETIO PowerBOX 3Px comes in several variants with different electrical socket types. For instance, PowerBOX 3PF features Type F - DE Schuko sockets used in most of Europe. UK and FR versions are also available.

    PowerBOX 3Px is a professional product. The output relays switch when the voltage is zero (ZVS), and the product operates in a wide temperature range of -20°C to +65°C. The PowerUp state of each output is configurable, and the IOC function protects against momentary switching during FW upgrades.

    With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service is provided for a fee but it uses SSL security and servers in Europe.



    Detailed information

    Related products

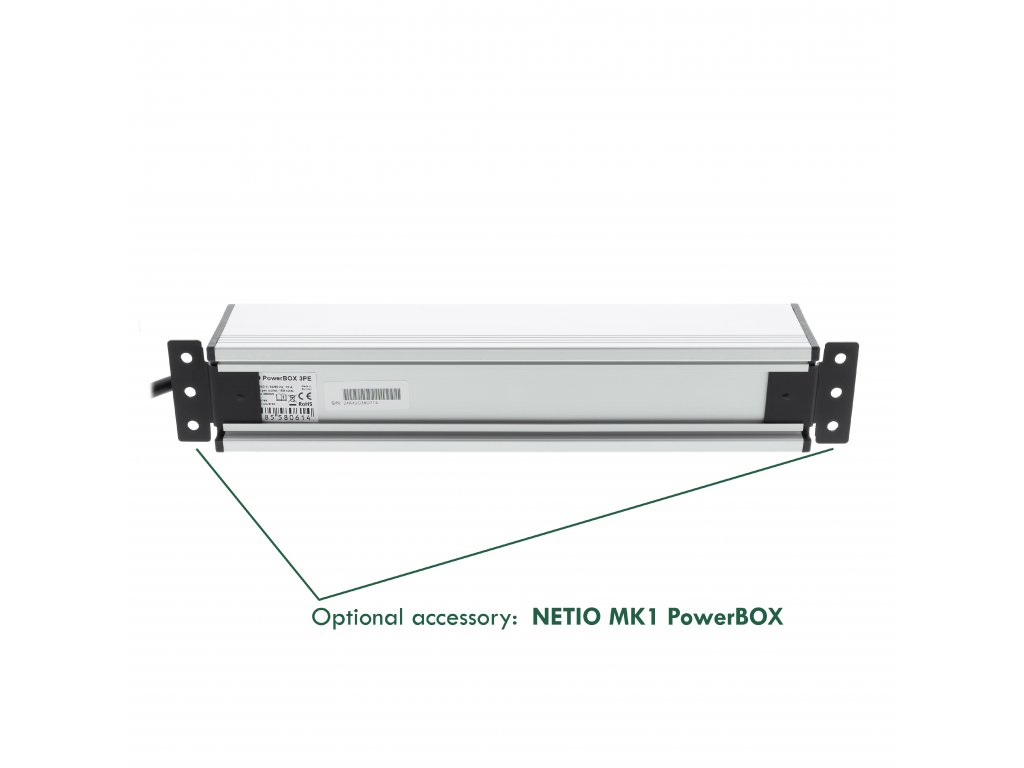

    PowerBOX 3PE NETIO MK1 accessory
    NETIO MK1 PowerBOX
    In stock (>10 pcs)
    €19,36 incl. VAT
    €16

    Metal bracket for 1 piece NETIO PowerBOX 3Px on the wall contains two pieces of metal.Both parts of the holder slide into the aluminum profile from behind.6mm diameter holes are...

    Code: 8594185580669
    NETIO MK2 holders PowerBOX (1)
    NETIO MK2 PowerBOX
    In stock (>10 pcs)
    €38,72 incl. VAT
    €32

    Metal brackets (2 pieces) for 1 unit of NETIO PowerBOX 3Px / 4Kx into a 1.5U space in a 19” rack frame. The package includes M6 screws to fasten the device in the 1.5U...

    Code: 8594185580935
    NETIO MK3 holders PowerBOX (1)
    NETIO MK3 PowerBOX
    In stock (>10 pcs)
    €38,72 incl. VAT
    €32

    Metal brackets to fasten 1 unit of NETIO PowerBOX 3Px / 4Kx to a vertical bar in a rack frame. The package includes 4x M6 screws to fasten the device.

    Code: 8594185580942
    Show all related products

    Product detailed description

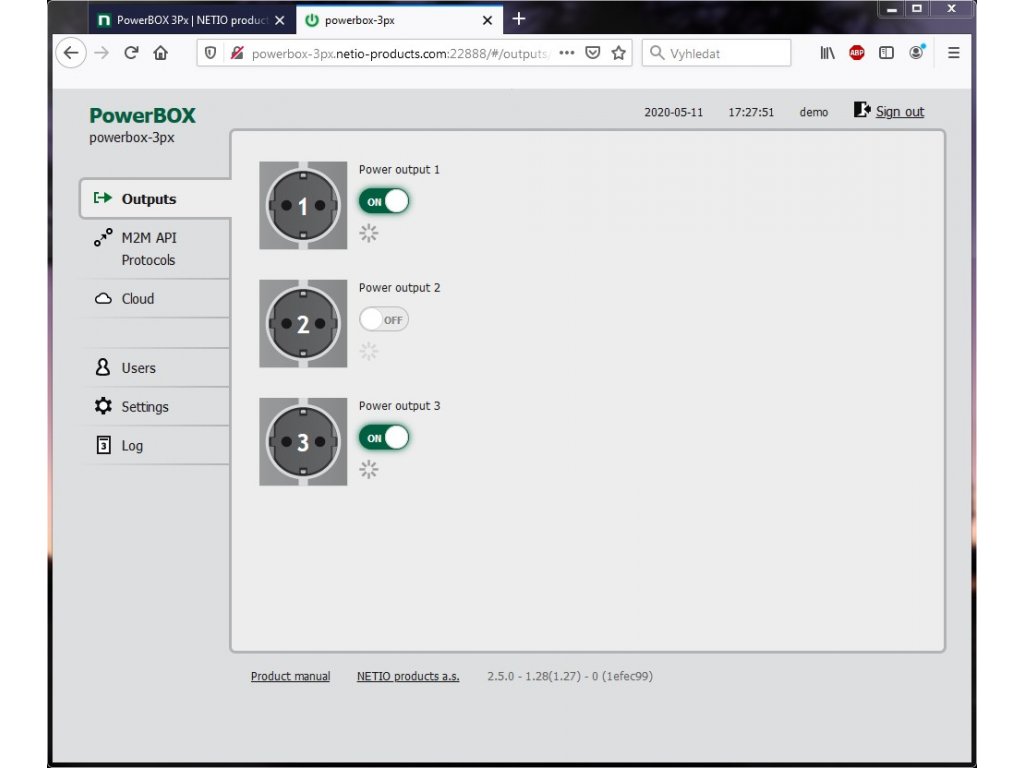

    NETIO PowerBOX 3Px is a power socket device with 3 outputs controlled over a LAN. Each individual output can be switched on and off in the web intereface.

    Open API enables integration into third-party systems using a wide range of protocols (JSON, Modbus/TCP, SNMP, MQTT, Telnet, ..).

    With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service is provided for a fee but it uses SSL security and servers in Europe.



    Typical applications of remotely controlled power sockets

    • Restart over the Web
    • Energy savings
    • Switching power outputs on and off with a mobile app
    • Switching sockets on and off using the NETIO Cloud service



    • Controlling electrical sockets with a driver from multimedia applications (NEETS, Crestron, Control4, CUE)
    • Open API connection to open systems (Node-RED, Mikrotik, StreamPipes, HMS, ..)
    • Open API MQTT cloud connection to portal applications (DevicePilot, AWS, IBM Bluemix, MS Azure)



    Open API

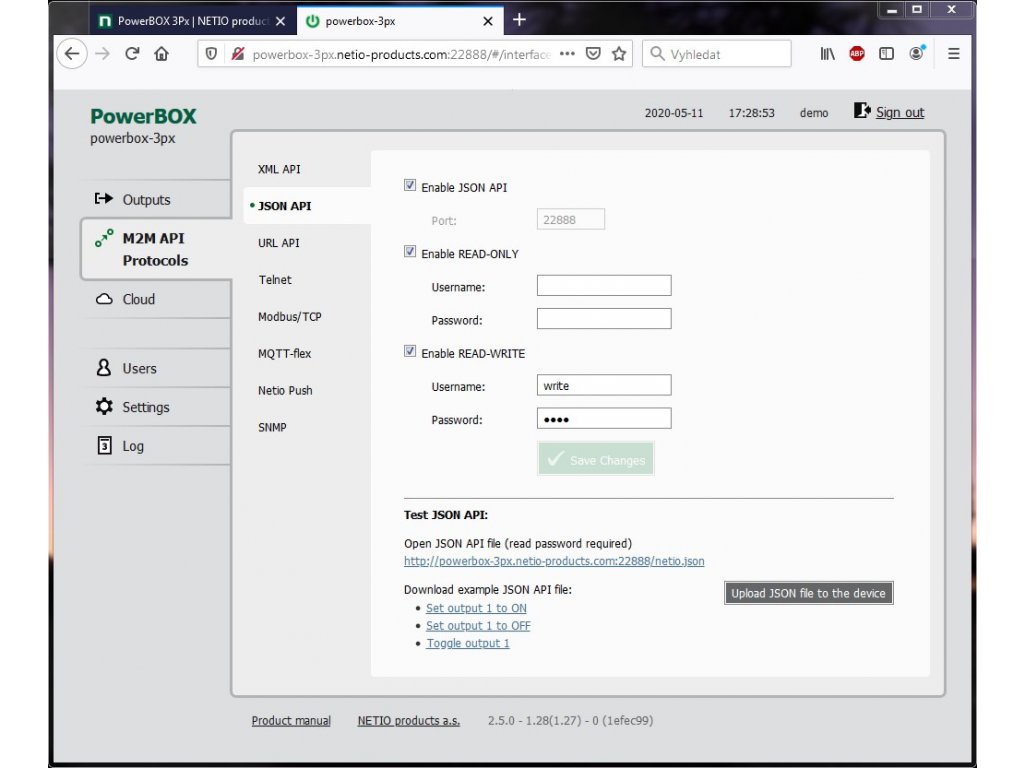

    NETIO PowerBOX 3Px smart electrical sockets can be always controlled over the Web, and support the NETIO Cloud. For Open API communication, M2M protocol can be chosen from among the following:

    • Modbus/TCP
    • MQTT-flex
    • Telnet
    • URL API (http get)
    • JSON over HTTP
    • XML over HTTP
    • SNMP v1
    • SNMP v3
    • HTTP(s) Push JSON
    • HTTP(s) Push XML

    The SNMP protocol can be always used in parallel to other APIs.

    Documentation for the protocols is available at the NETIO website. NETIO ANxx (Application Notes) provides useful deployment guidance.



    Professional product

    The LAN-controlled PowerBOX 3Px power socket device is designed for professional use.

    • Wide range of operating temperatures from -20°C to +65°C
    • IOC function (Independent Output Control) – states of outputs are not affected by LAN connection failures, network layer restarts, or firmware upgrades
    • PowerUp state – the state of the outputs after the device is powered up is configurable (On/Off/Last)

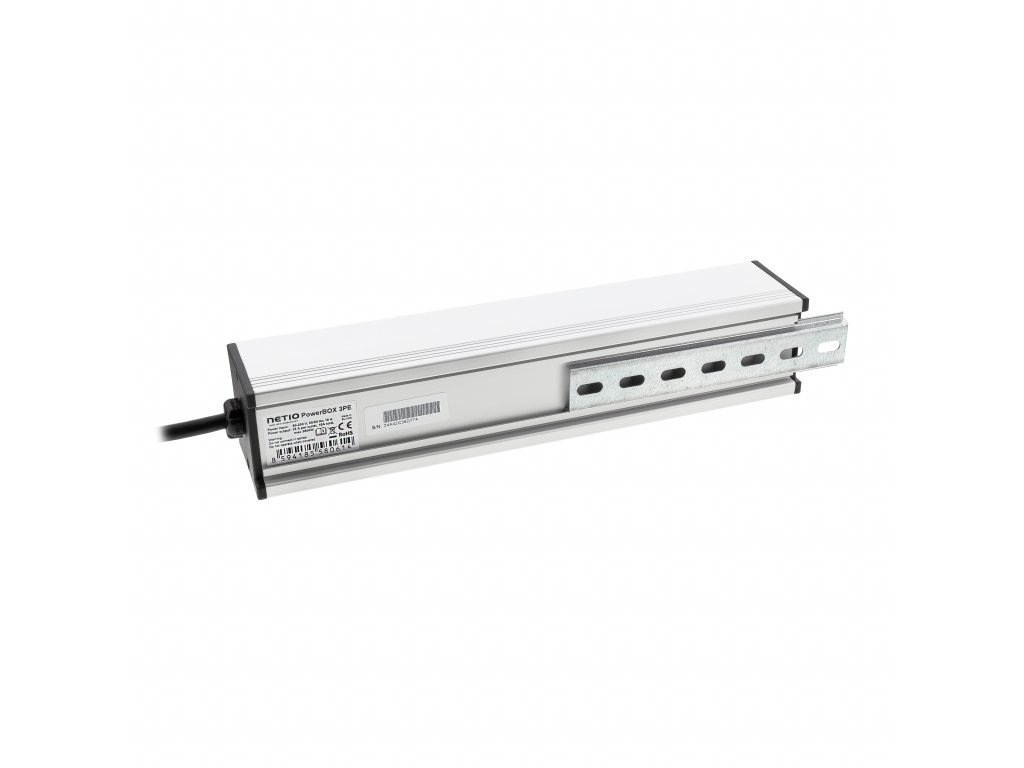

    • Easily mountable on a wall or a DIN rail
    • ZVS – for switching an appliance on and off more frequently than a few times a day, ZVS (Zero Voltage Switching) support becomes important in the long term. ZVS makes sure that the output relay switches when the immediate voltage is zero.
    • The Scheduler function - time based switching

    ZVS reduces the stress on the appliances connected to the outputs and prolongs their lifetime. It is particularly suitable for electrical appliances with a high inrush current. A high inrush current is typical for switching power supplies common in IT as well as in LED lighting and other application areas.

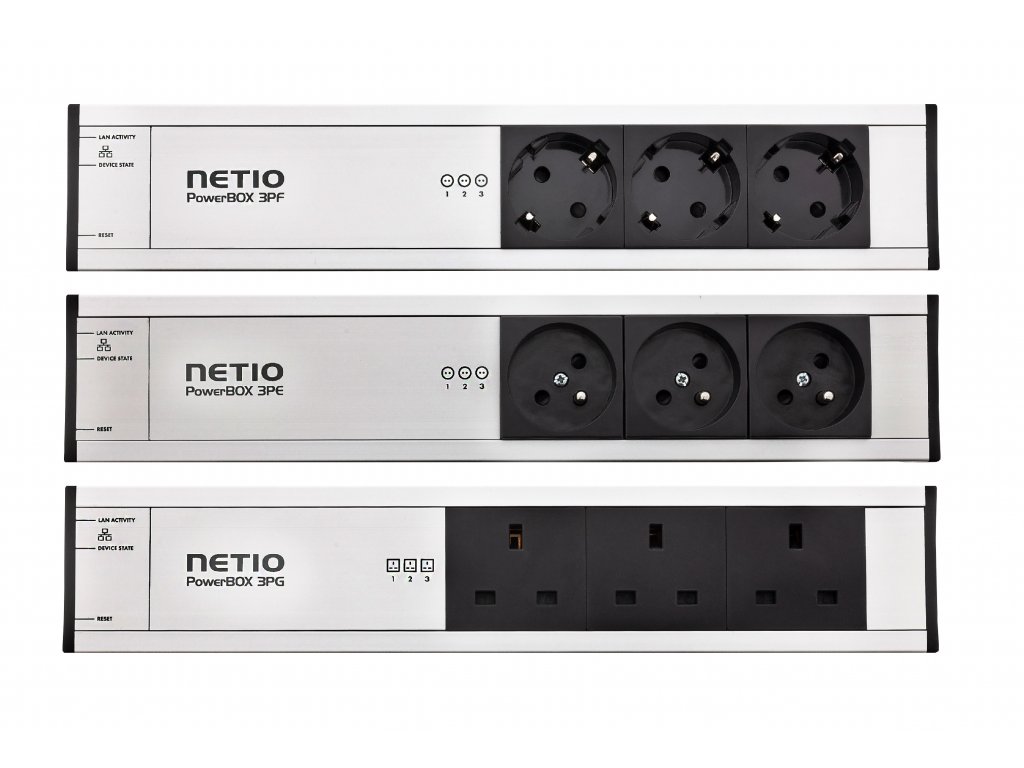

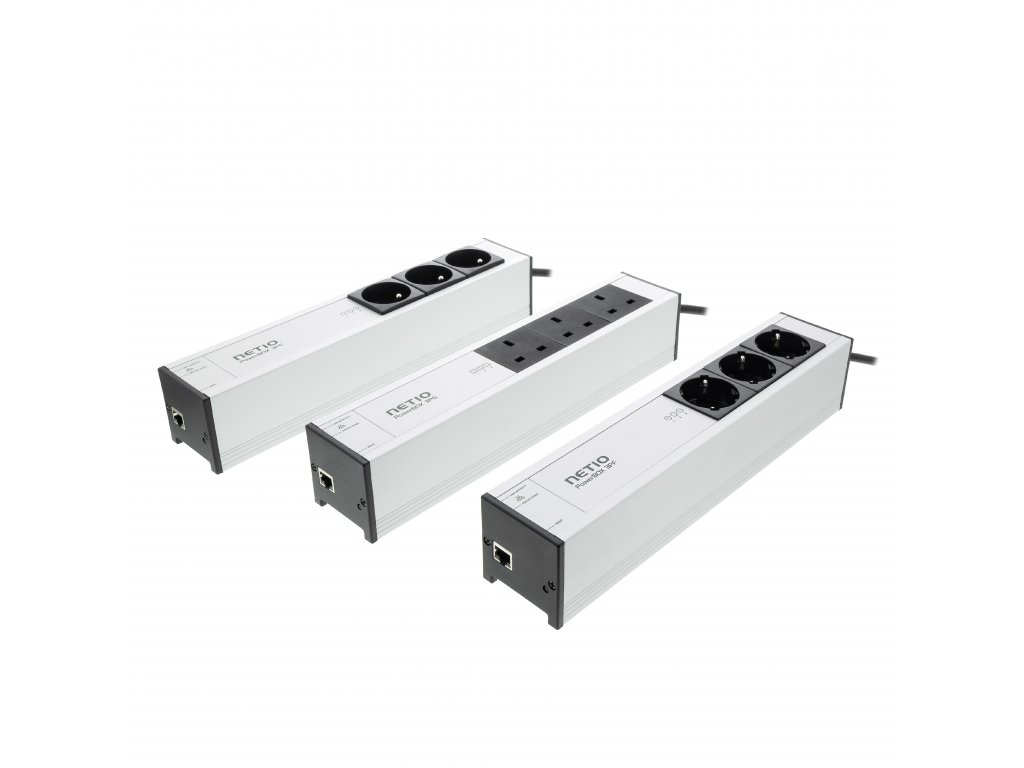

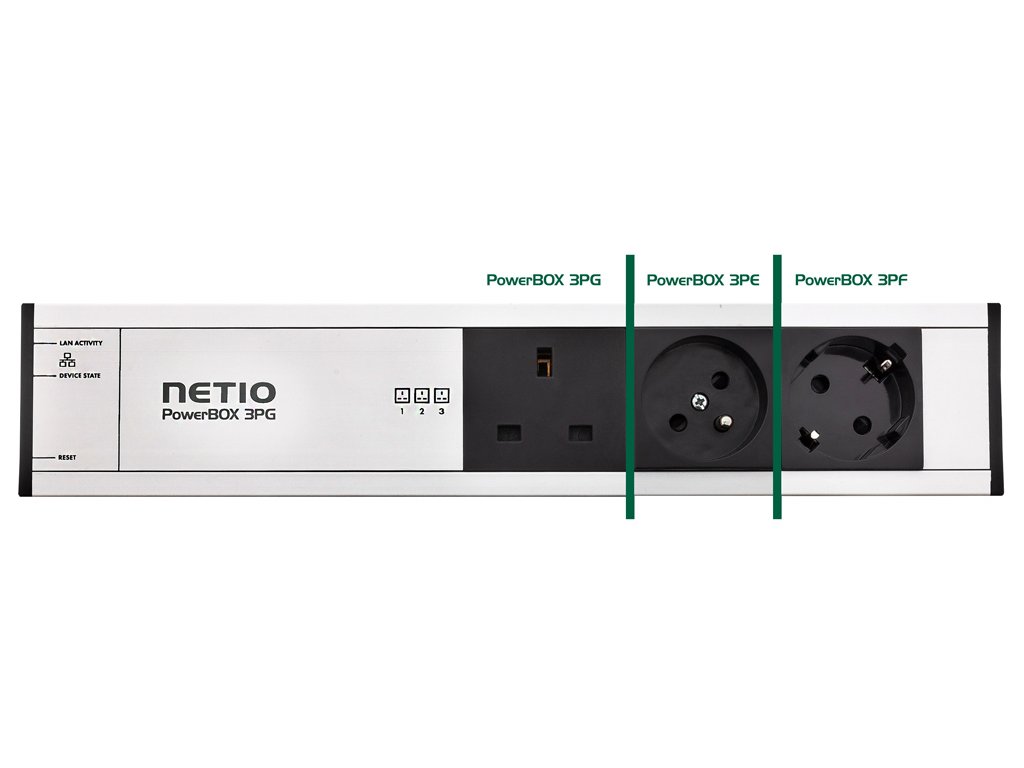

    3Px – Different electrical socket versions (“x”)



    3Px

    Input

    Output

    Voltage / current

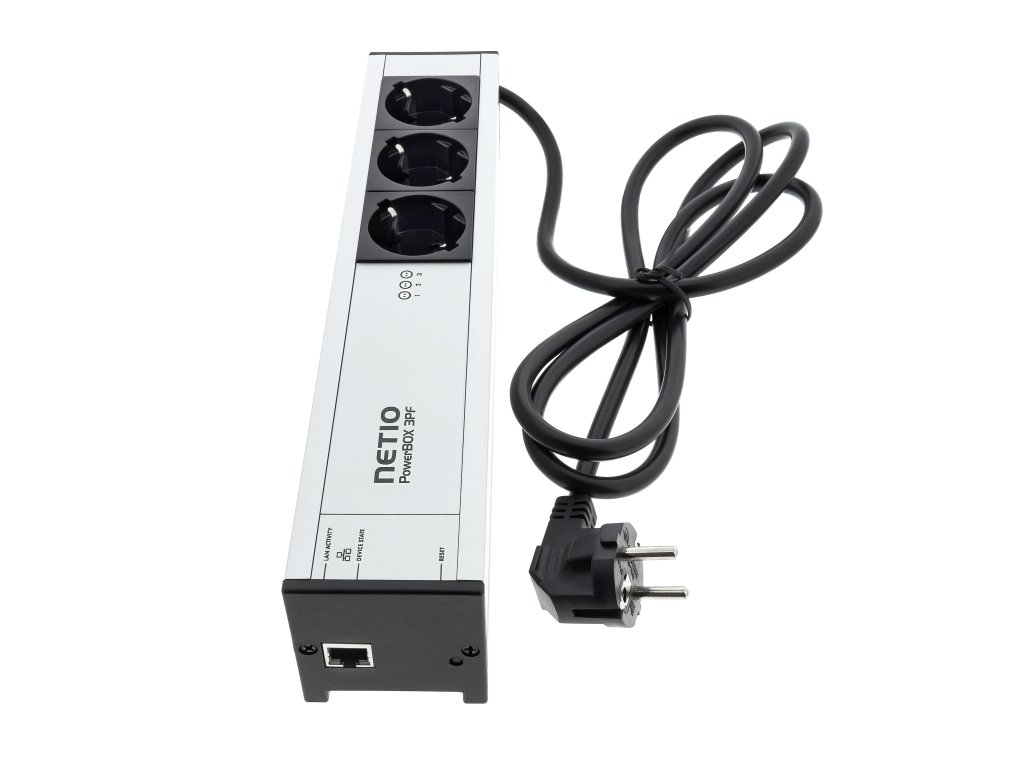

    PowerBOX 3PF

    Europlug

    DE – Type F Schuko

    230V / 16A

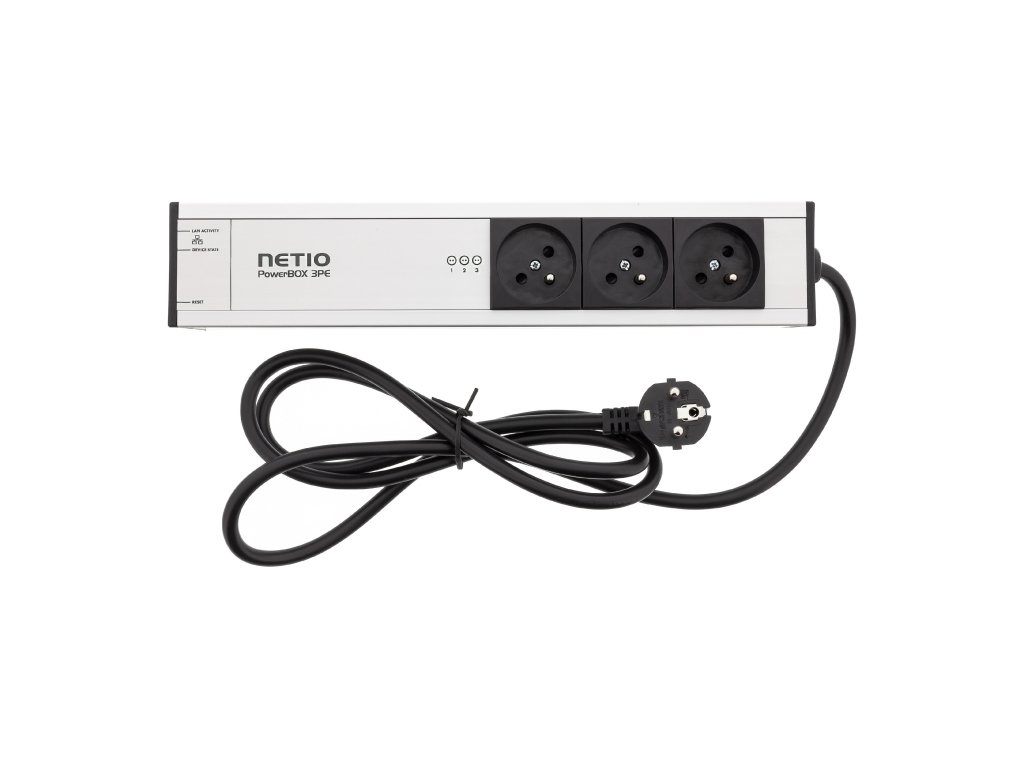

    PowerBOX 3PE

    Europlug

    FR – Type E

    230V / 16A

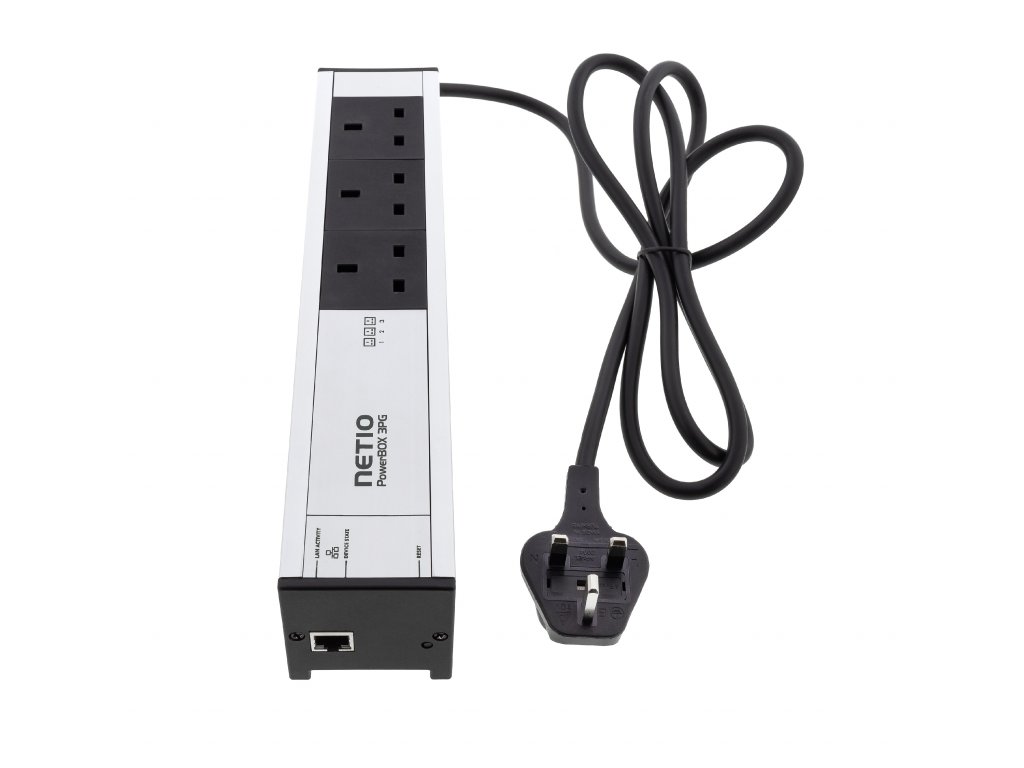

    PowerBOX 3PG

    UK – Type G

    UK – Type G

    230V / 13A





    AV drivers

    • BrightSign: free plugin AN47
    • CONTROL4: free driver to control outputs
    • CRESTRON: free driver to control outputs
    • ELAN: free driver to control outputs
    • KRAMER: free driver to control outputs
    • Neets: free driver AN44
    • RTI: free driver to control outputs
    • SAVANT: free driver to control outputs

    • LOXONE: example AN53
    • Home Assistant: drivers by community
    • OpenHAB: drivers by community



    NETIO PowerBOX 3Px specifications

    • LAN (RJ45): Yes
    • WiFi: No
    • Web: Built-in web server
    • Online demo: Yes (http://powerbox-3px.netio-products.com:22888/    login: demo/demo  )
    • FW upgrade: Yes - web

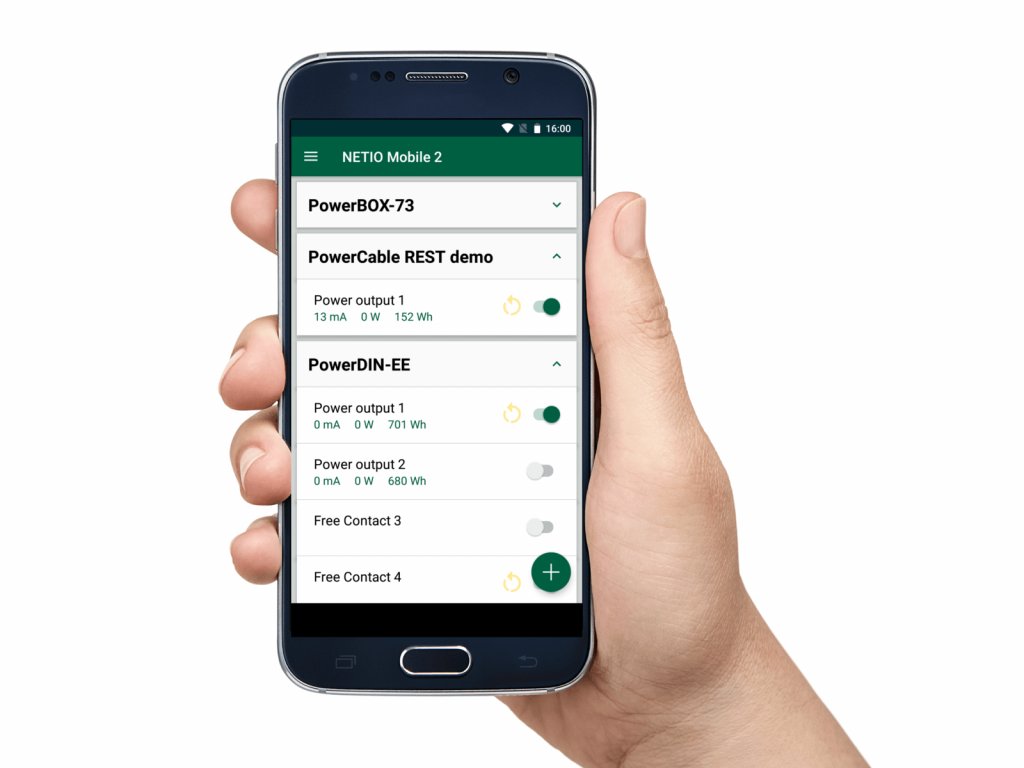

    • Mobile app: NETIO Mobile2 (Android)
    • Cloud connection needed for installation: No
    • Control button: Yes
    • Service: NETIO Cloud (for a fee)
    • Open API (M2M protocols)
      • Modbus/TCP
      • MQTT-flex
      • Telnet
      • URL API (http get)
      • JSON over HTTP
      • XML over HTTP
      • SNMP v1
      • SNMP v3
      • HTTP Push JSON
      • HTTP Push XML
    • Lua support: No
    • Scheduler function: Yes (from FW 3.0.0.)
    • IP WatchDog function: No (but planned)
    • Sending e-mails: No



    • Power input: The “x” in the “3Px” model number specifies the plug type
    • Power output: The “x” in the “3Px” model number specifies the socket type (3 sockets)
    • Number of controlled outputs: 3
    • Number of metered outputs: 0
    • Available electrical socket versions:
      • Type F – DE schuko – PowerBOX 3PF (230V / 16A)
      • Type E – FR – PowerBOX 3PE (230V / 16A)
      • Type G – UK – PowerBOX 3PG (230V / 13A)
    • Internal consumption: Max 1.8 W
    • SPD – surge protection: Yes, type 3
    • Switching element: relay SPST-NO, ZCS
    • ZVS (Zero Voltage Switching): Yes
    • IOC (output state independent from FW updates): Yes
    • PowerUp state of outputs: On / Off / LAST state

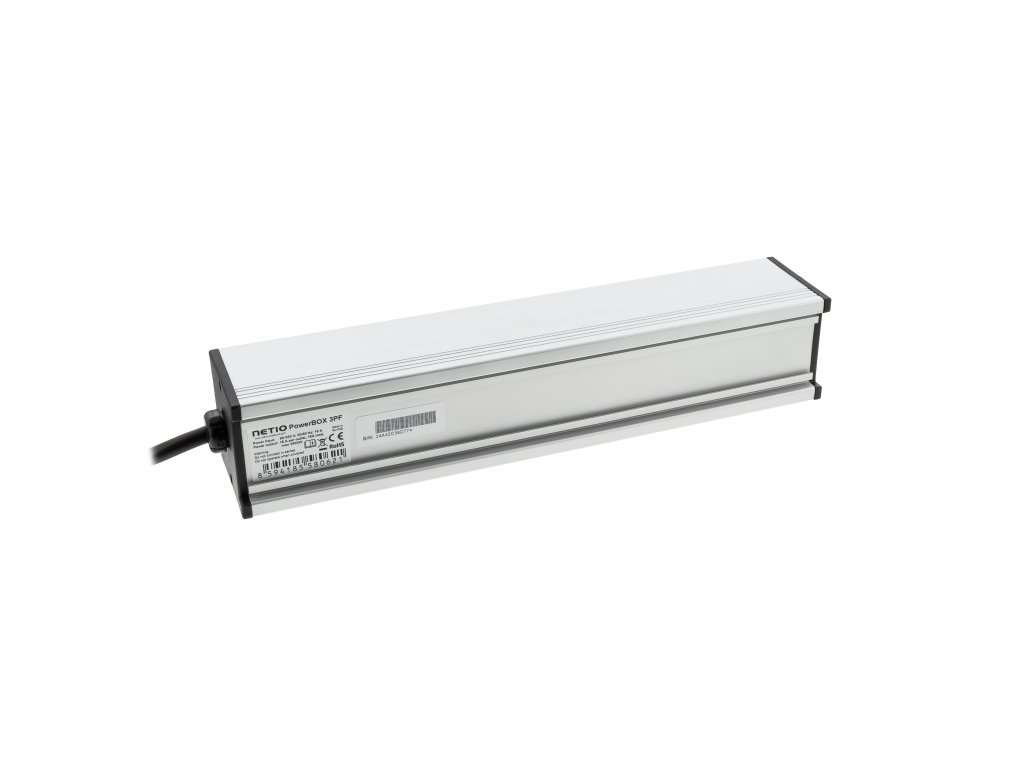

    • Mechanical characteristics: Aluminium profile – 320 x 62 x 62 mm + cable 1.6 m
    • Protection: IP30
    • Sound output: No
    • Temperature range: -20°C to +65 °C





    More information about this product: https://www.netio-products.com/en/device/powerbox-3px



    Additional parameters

    Category: NETIO power sockets
    Warranty: 2 years
    ? Protocols (M2M API): REST (XML, JSON, URL API), Modbus/TCP, Telnet, MQTT, SNMP
    ? Lua programmable: No
    ? Power measurement: Without measurement
    ? Network: LAN (Ethernet)
    ? NETIO Cloud: Yes
    ? Power socket type: DE Schuko (Type F), FR (Type E), UK (Type G)
