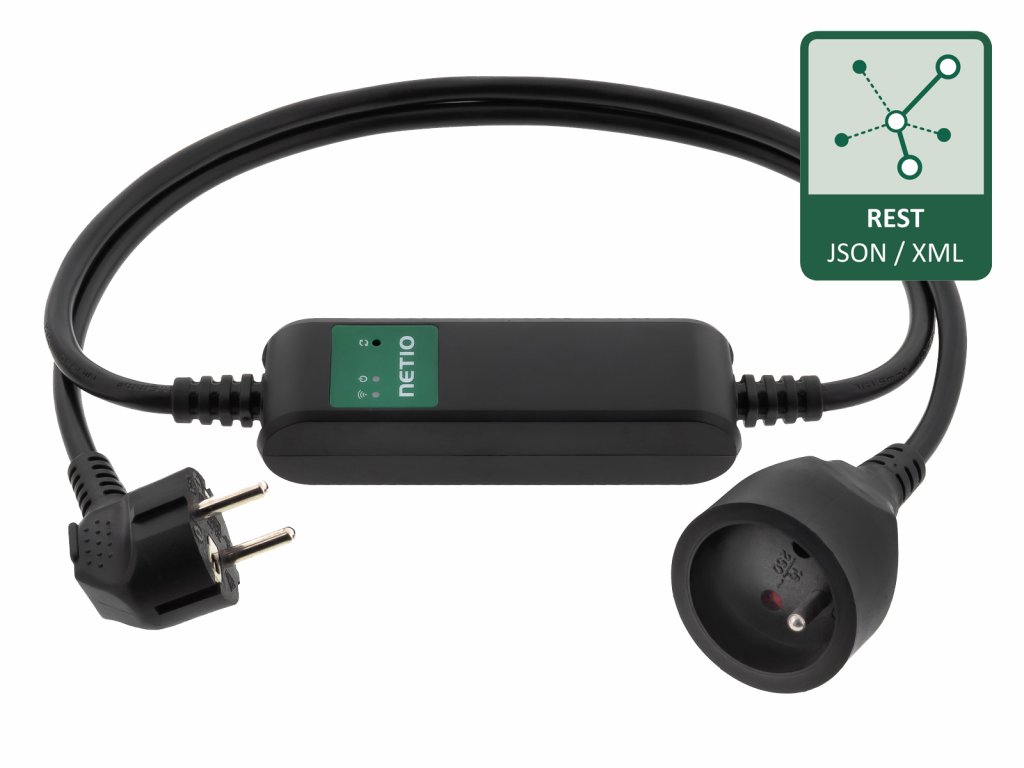

PowerCable 1Kx (smart power extension cord)

Product detailed description

NETIO PowerCable 1Kx is a smart WiFi controlled and metered power socket (extension cable). You can control it via web interface, mobile application, NETIO Cloud or 1 from 10 available Open API protocols.

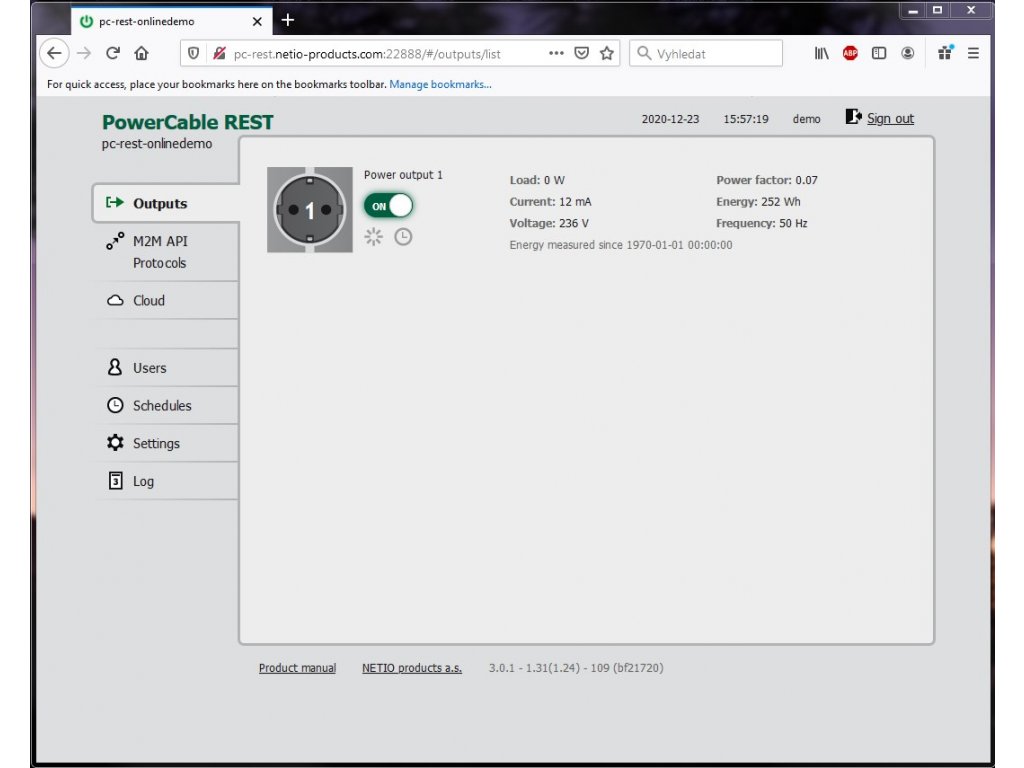

PowerCable is an industrial IoT smart power extension cable with a WiFi connection to a LAN. Device web interface can be used to display the energy metering values (V, A, kWh, W, Hz, TruePF) and turn on/off the power socket output.

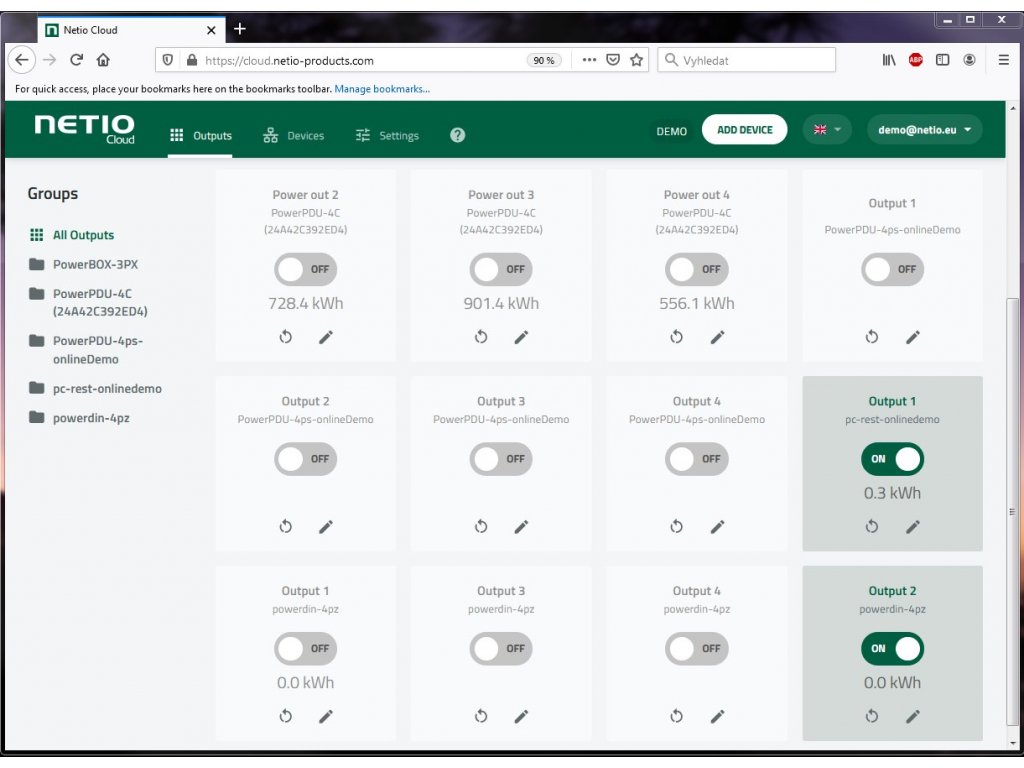

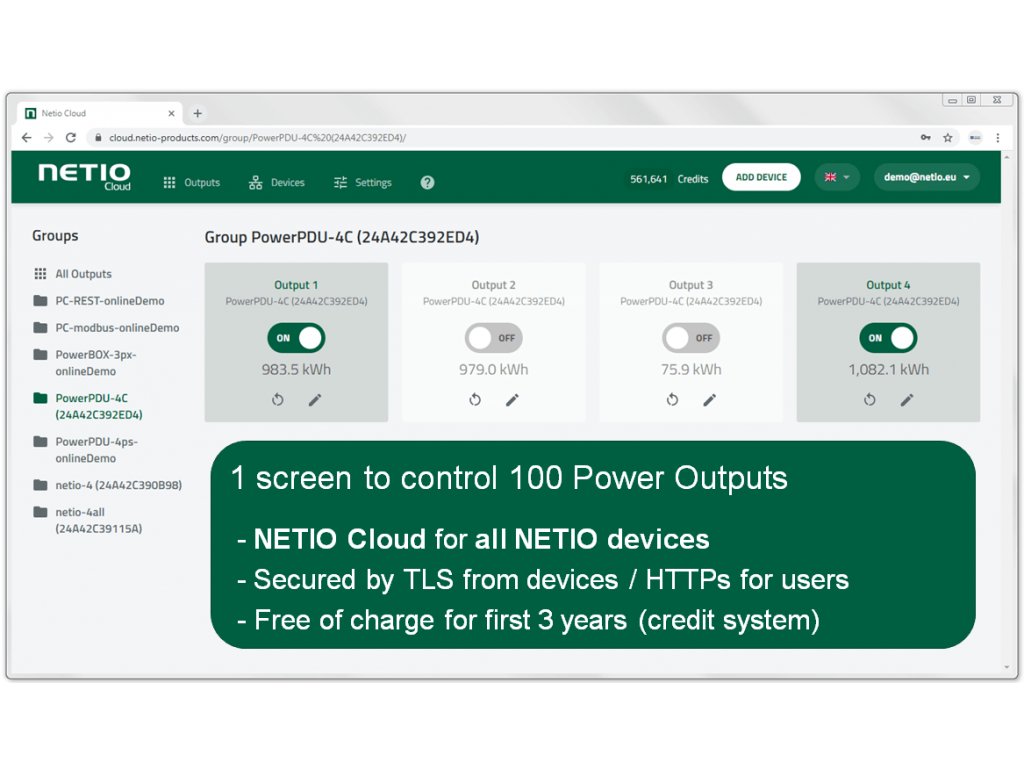

With the NETIO Cloud service, the output can be controlled from anywhere. NETIO Cloud is a paid service, using the SSL Security and servers are based in Europe.

• WiFi connection, Auto-Reconnect
• Open API: Modbus/TCP, SNMP, JSON, URL API and more
• NETIO Cloud service (secured by TLS)
• Electrical measurement (V, A, W, kWh, TPF, Hz, Phase), accuracy <1%
• ZCS – Zero-current switching

Applications

NETIO PowerCable 1Kx is an ideal solution for remote control and metering 230V power sockets outside electrical cabinets.

• Switching electric appliances when needed (water boiler, lighting, audio amplifiers, ...).
• Restart of microwave transmission devices, servers, displays and AV equipment.
• Energy consumption measurement for pharmaceutical fridges, industrial devices and other commercial appliances.

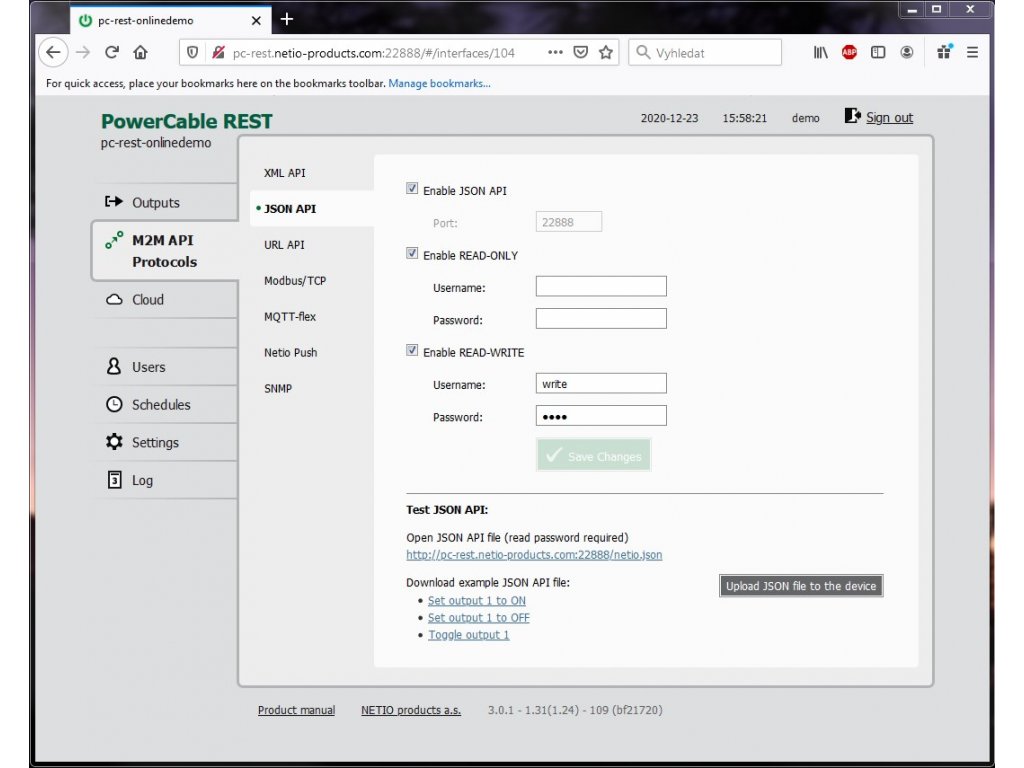

Open API (protocols)

• SNMP v1/v3 allows you to monitor graphs of electrical consumption in Nagios or Zabbix systems for IT supervision.
• By Modbus/TCP you can measure and switch electrical output from any PLC or SCADA system.
• MQTT or HTTP(s) Push makes connection of PowerCable REST 101x into cloud aplication AWS, IBM Bluemix or MS Azure much easier.
• Thanks to MQTT-flex extension, you can configure MQTT structure (Topic / Payload) and conditions of sending messages in detail.

AV Drivers

NETIO PowerCable 1Kx can be easily used with these multimedia and AV systems (thanks to AV drivers): Control4, CRESTRON, Domotz, ELAN, HSYCO, NEETS, RTI, SAVANT, SKAARHOJ, Tridium Niagara and others.

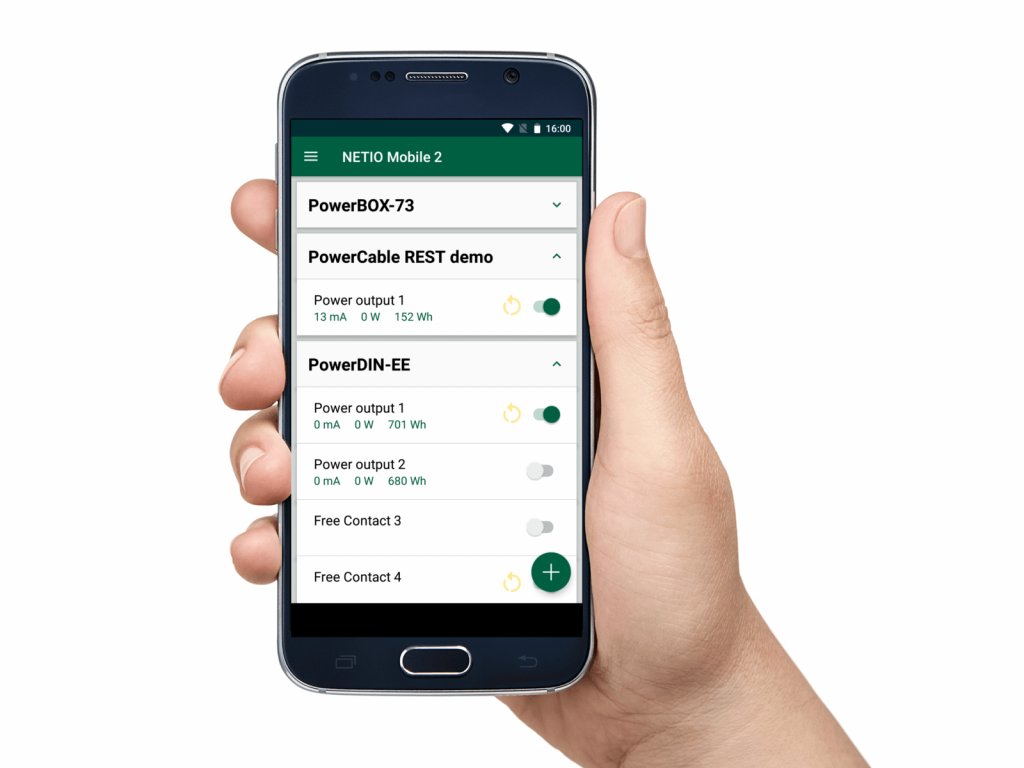

PowerCable 1Kx supports NFC interface and using NETIO Mobile2 application, you can quickly setup SSID of your local WiFi network and other parameters even before the device is running.

The smart power socket PowerCable 1Kx is connected via WiFi (internal antenna) to your LAN network.The product features WiFi Reconnect function, which ensures stable availability of the device in an ordinary WiFi network.

Zero Current Switching

ZCS (Zero Current Switching) support is important for switching devices more than several times a day. ZCS ensures switching on and off of the switching relay when the current passes through zero.

ZCS reduces the stress on the connected electrical appliances, increasing the lifetime in case of frequent switching of appliances with a high inrush current. High inrush current is typical for switching supplies common in IT equipment.

Electrical measurement

Electrical measurement (accessible over the web interface as well as Open API)

• Current [A]
• Voltage [V]
• Consumption [Wh]
• Output power [W]
• TPF (True Power Factor)
• Frequency [Hz]
• Phase [°]
• Reverse Energy [Wh]
• Measurement accuracy: better than 1%

AV drivers

• BrightSign: free plugin AN47
• CONTROL4: free driver to control outputs
• CRESTRON: free driver to control outputs
• ELAN: free driver to control outputs
• KRAMER: free driver to control outputs
• Neets: free driver AN44
• RTI: free driver to control outputs
• SAVANT: free driver to control outputs


• LOXONE: example AN53
• Home Assistant: drivers by community
• OpenHAB: drivers by community

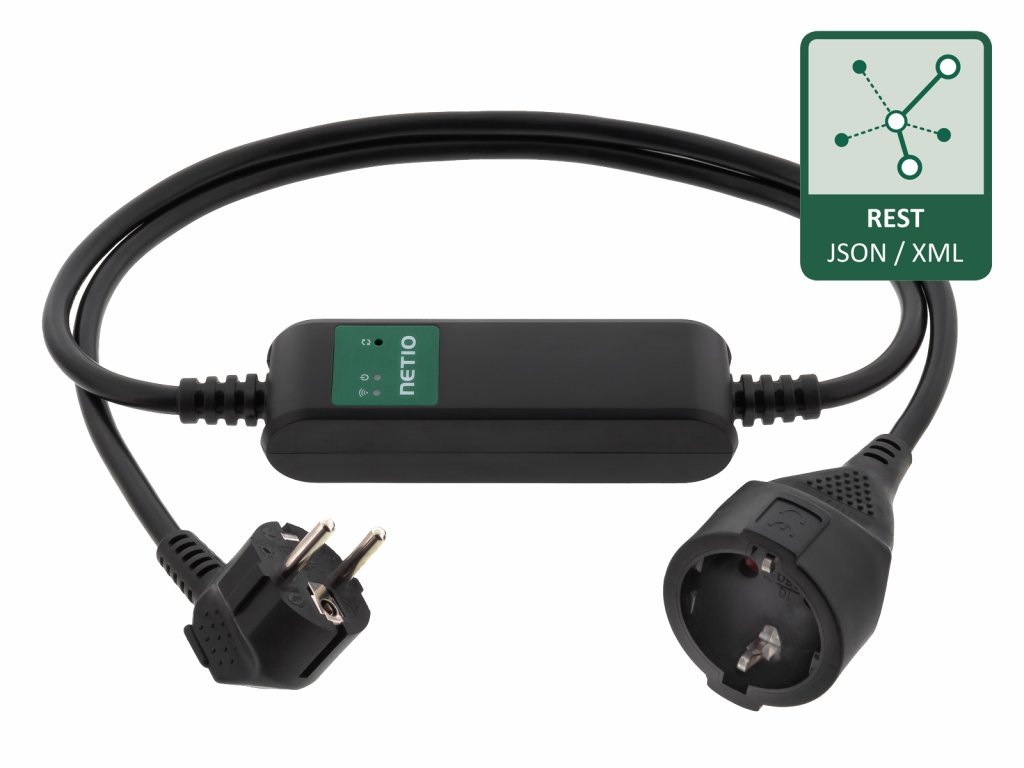

101x – The “x” denotes different types of plugs and sockets

PowerCable 1Kx is supplied in several versions depending on the electrical socket type (as used in different countries). All 101x models come with two 0.55m cables with the corresponding electrical socket and plug types.

NETIO PowerCable 1Kx specifications

• LAN (RJ45): No
• WiFi: Yes (Internal antenna, 11 b/g/n; 2.4GHz)
• WiFi Reconnect: Yes
• Online demo: (http://pc-rest.netio-products.com) (demo / demo)
• Web: Built-in web server
• FW upgrade: Yes – web
• Configuration by NFC: Yes

• Mobile App: NETIO Mobile 2 (Android & iOS)
• Service: NETIO Cloud (paid service, secured by TLS)
• Cloud connection needed : No
• Control button: Yes

• Open API (M2M protocols)
  • JSON over http (default)
  • MQTT-flex (ssl / no-ssl)
  • SNMP v1/v2
  • SNMP v3
  • Modbus/TCP
  • Telnet
  • URL API (write only)
  • XML over http
  • HTTP(s) Push JSON
  • HTTP(s) Push XML

•

• AV drivers: Atlona, Control4, CRESTRON, Utelogy, ELAN, SAVANT, SKAARHOJ, …
• Scheduler function: Yes
• IP WatchDog function: Yes
• PowerWatchDog function: Yes
• Sending e-mails: No
• WiFi AP network mode support: No

•

• Power input: The “x” in the “1Kx” model number specifies the plug type
• Power output: The “x” in the “1Kx” model number specifies the socket type
• Available socket versions: DE, FR, UK, CH, IEC-320 C13/C14
• Internal consumption: Max 1,2 W
• Electrical measurements: Current [A] / Energy [Wh] / Input power [W], TruePF [-]), Frequency [Hz] / Voltage [V] / Phase shift [°] / Reverse Energy [Wh]
• Accuracy of electrical measurements: better than 1% (25°C)

•

• SPD – surge protection: Yes, type 3
• Switching element: relay SPST-NO, ZCS
• ZCS (Zero Current Switching): Yes
• IOC (output state independent on FW updates): Yes
• PowerUp state of the output: On / Off / LAST state

•

• Mechanical characteristics: Plastic housing - 180 x 40 x 30 mm + 2x 0,55m cable
• Protection: IP30
• Mechanical mounting: No
• Sound output: No
• Temperature range: -10°C to +65°C (for 65°C, max. current is 5A)
