PowerDIN 4PZ: dual 230V/16A electricity meter with relay

Code: 8594185580591
New
€229 / pcs €277,09 incl. VAT
In stock (> 10 pcs)

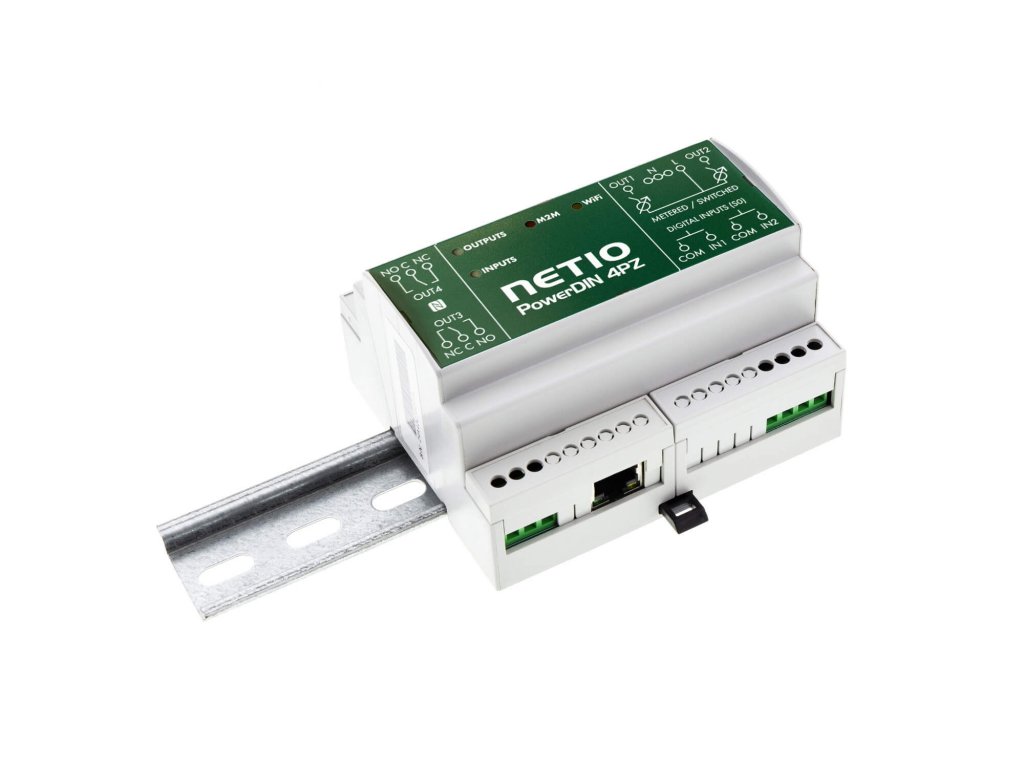

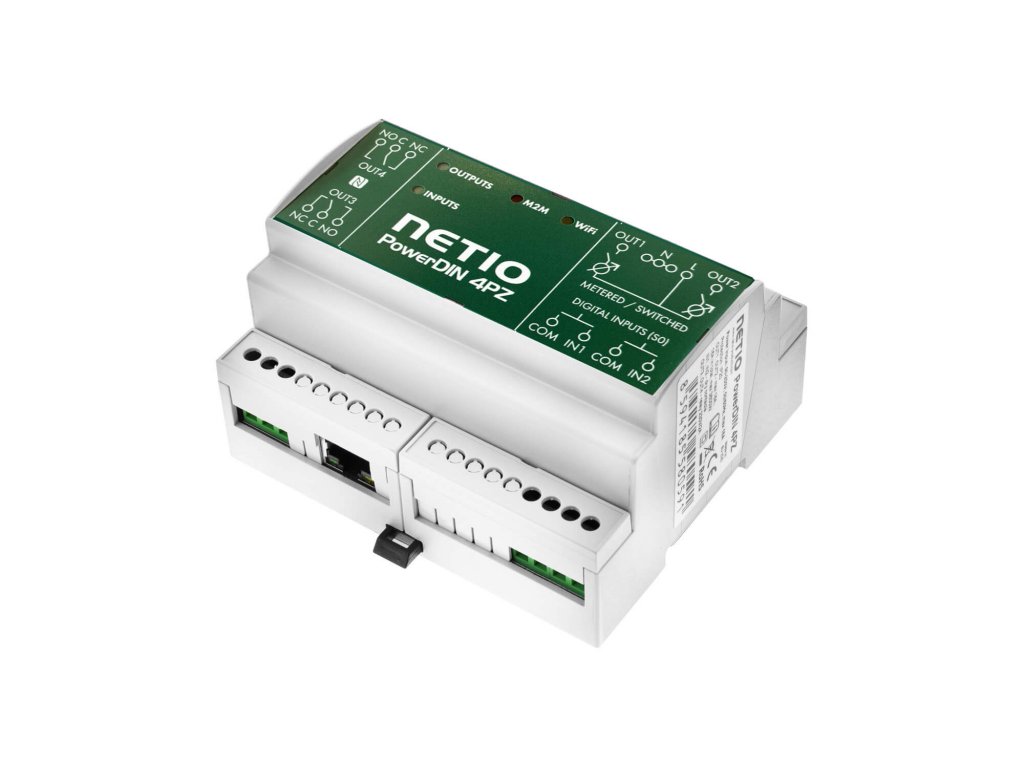

PowerDIN 4PZ is a dual 230V/16A electricity meter with LAN/WiFi and I/O. Web control, support for NETIO Cloud, Open API.

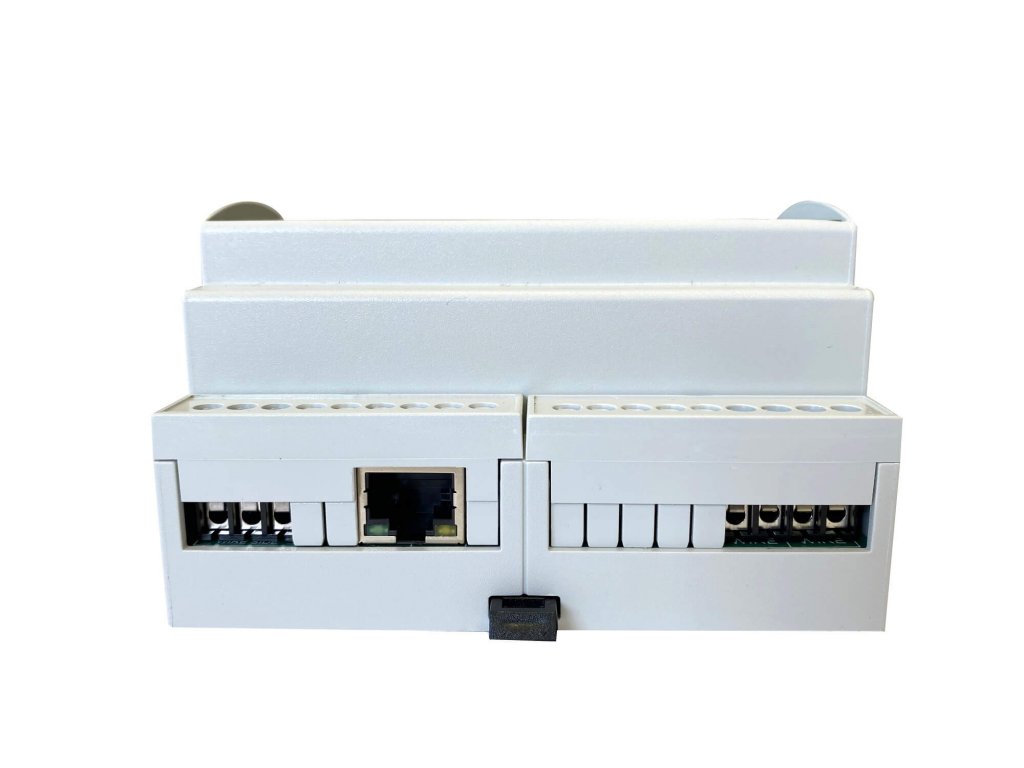

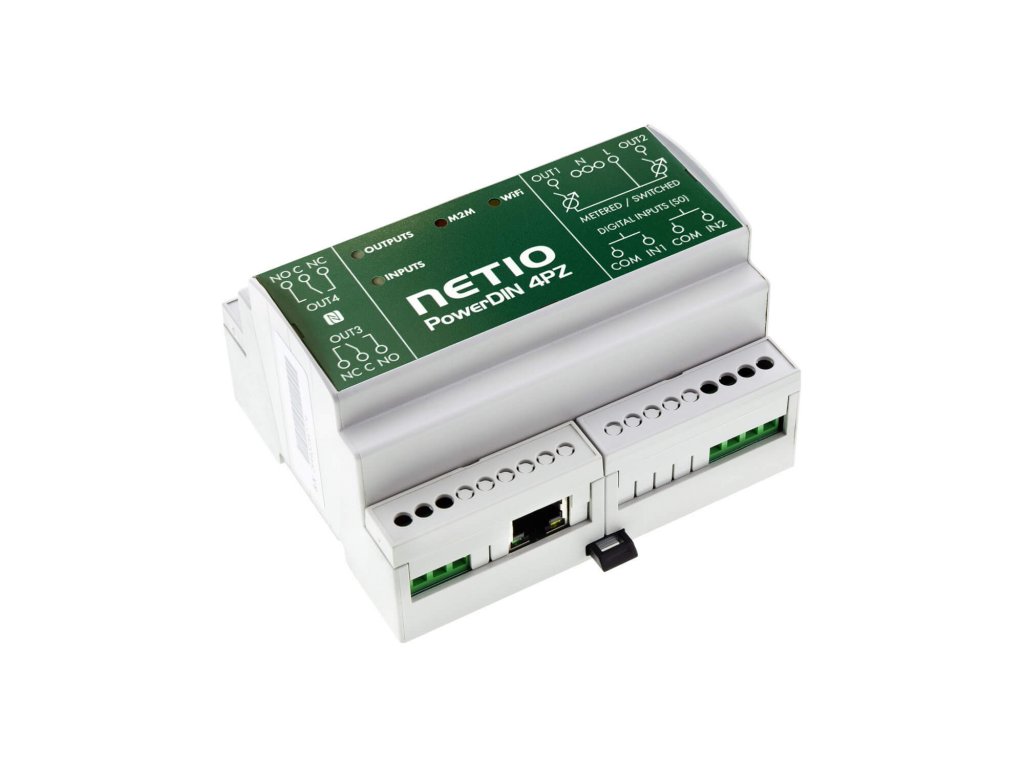

NETIO PowerDIN 4PZ connects to the network using a RJ45 jack (Ethernet) or WiFi (2.4 GHz – internal antenna).

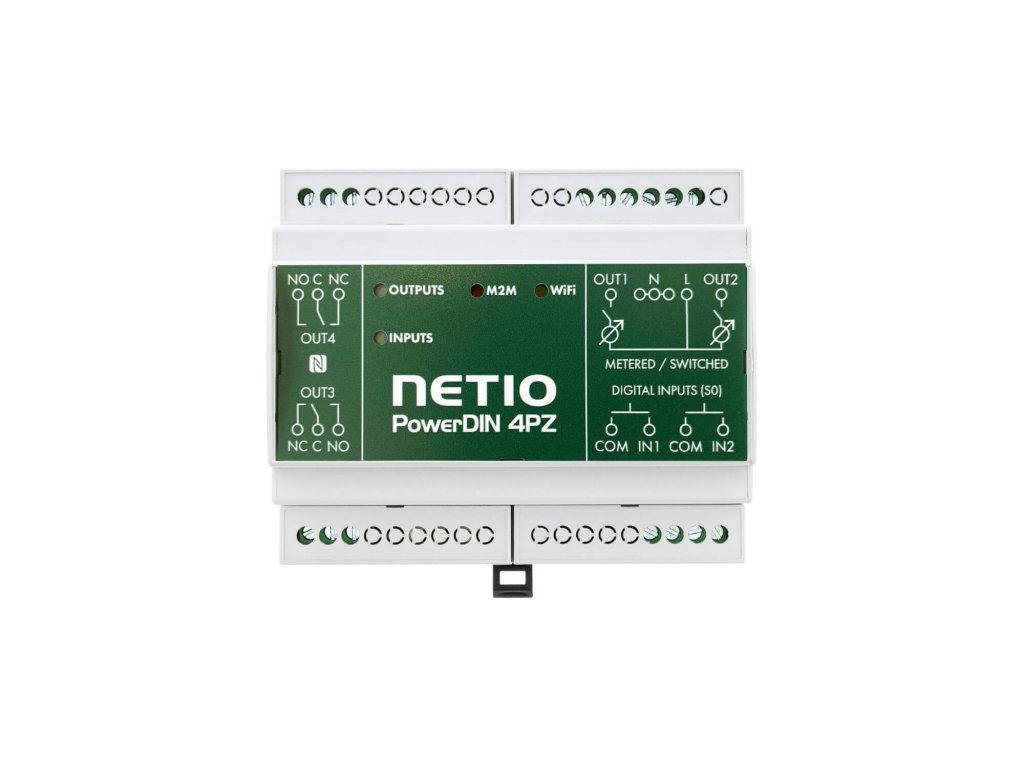

Outputs 1 and 2 feature accurate electricity metering (110/230V, max 16A). Moreover, the outputs can be switched on and off with a Zero Current Switching relay.

Outputs 3 and 4 feature NO/NC relay contacts.  Digital inputs 1 and 2 with 4-byte pulse counters can be used to connect momentary switches (dry contact) or S0 outputs of electricity, water or similar meters.

Using the product’s web interface, measured values can be read and the 4 outputs can be switched on or off.

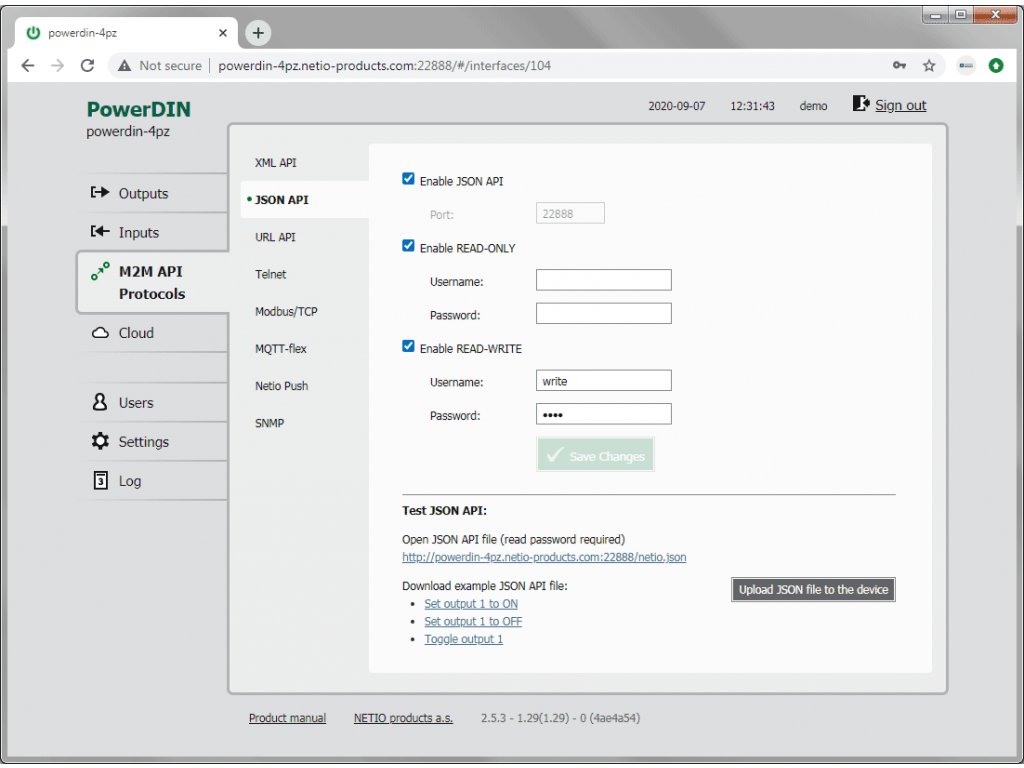

Open API enables integration into third-party systems using a wide range of protocols (JSON, Modbus/TCP, SNMP, MQTT, Telnet, ..).

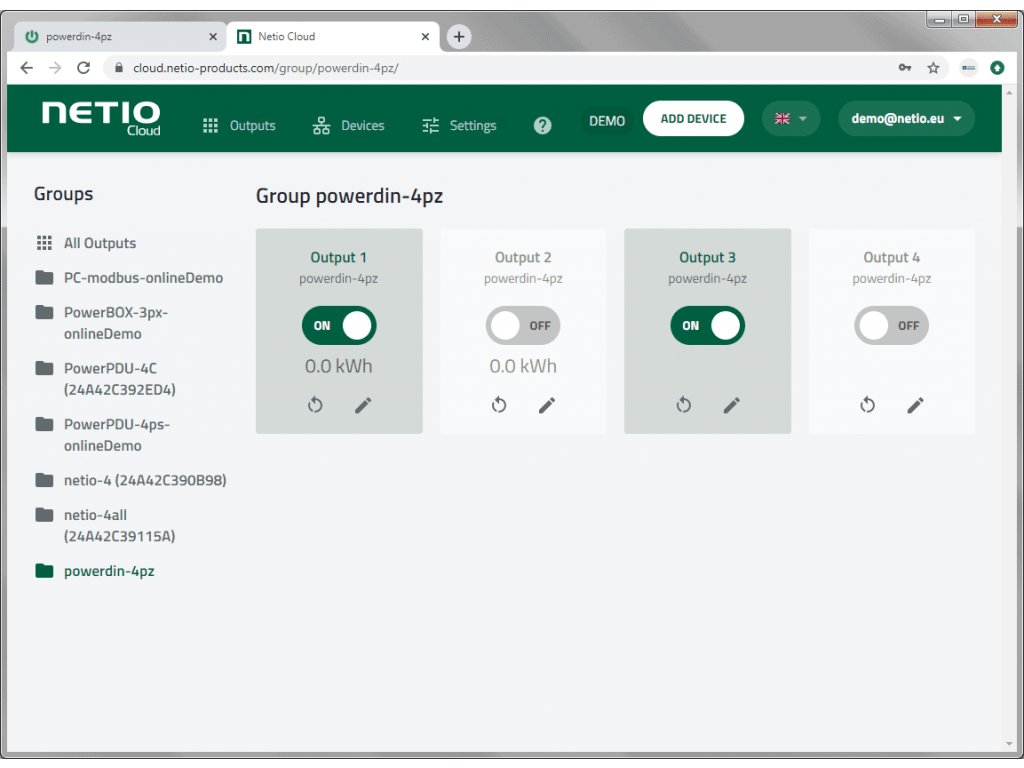

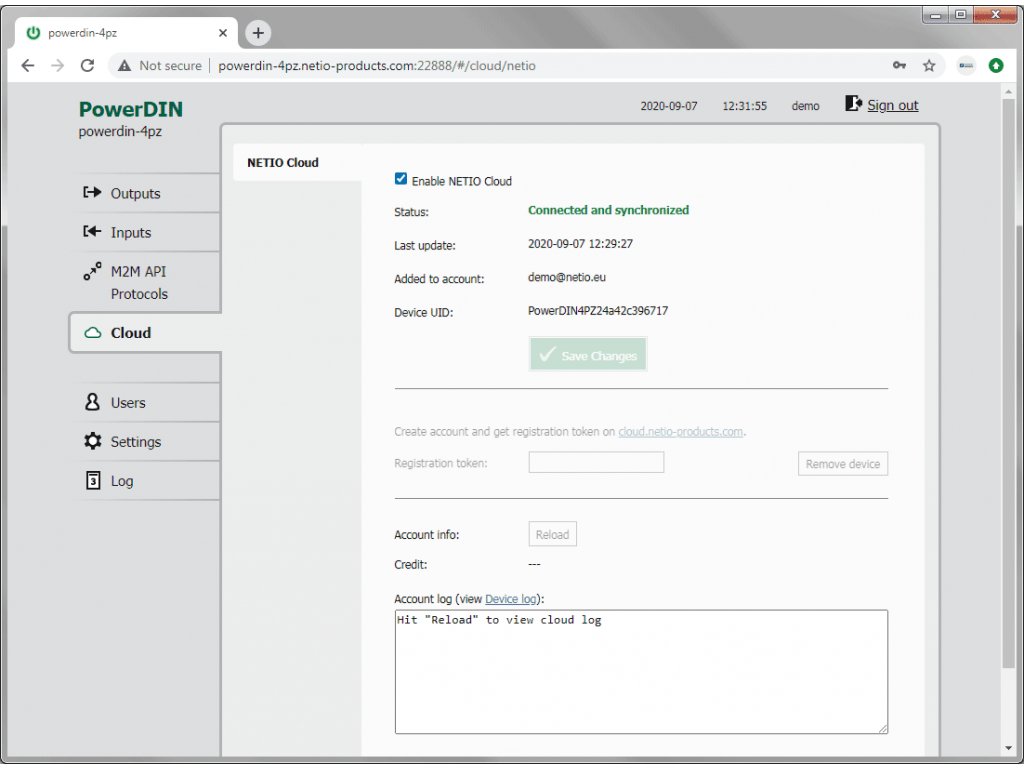

With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service, provided for a fee, uses SSL/TLS security and servers in Europe.

Detailed information

Product detailed description

  • LAN + WiFi connection, NFC configuration
  • WEB interface
  • Outputs 1, 2 measure 230VAC/16A + relay output
  • I/O expansion (2x digital output - relay, 2x digital input with counter)
  • OPEN API: MQTT-flex, Modbus/TCP, Telnet, JSON, XML, SNMP, ..

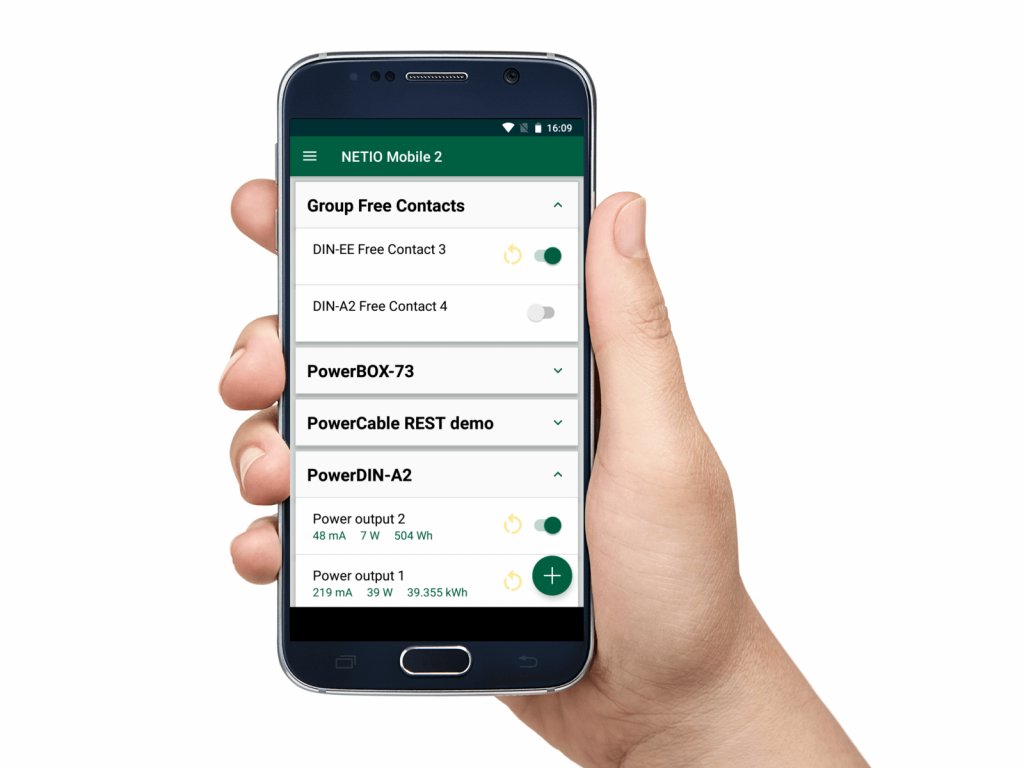

  • Mobile app: NETIO Mobile2 (Android)
  • Service: NETIO Cloud



Use cases for the remotely controlled electricity meter

  • Electricity consumption monitoring for machines in the manufacturing industry
  • Electric car AC charging control
  • Switching power outputs on and off with a mobile app
  • Consumption metering and socket control from NETIO Cloud



Open API

The NETIO PowerDIN 4PZ smart electricity meter can be controlled over the Web and the NETIO Cloud at the same time. For Open API communication, one M2M protocol can be chosen at a time from among the following:

  • Modbus/TCP
  • MQTT-flex
  • Telnet
  • http URL API
  • http JSON
  • http XML
  • SNMP v1

Documentation for the protocols is available at the manufacturer’s website. The ANxx Application Notes provide useful deployment guidance.

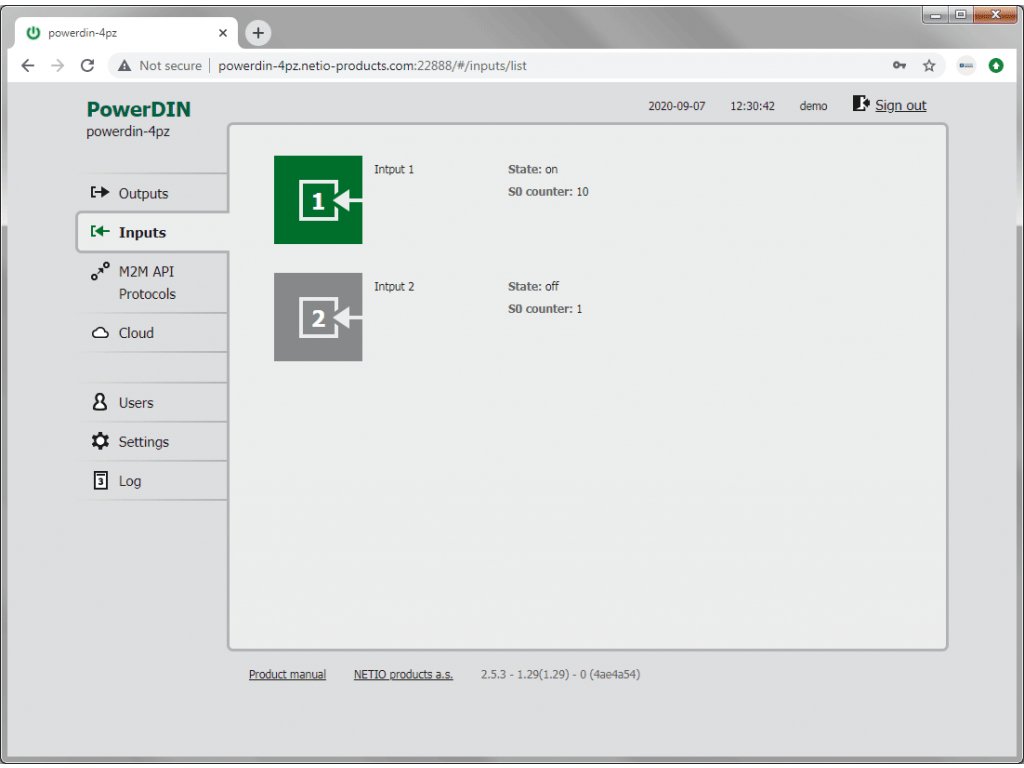

Digital inputs for S0 / momentary switch (dry contact)

The In1 and In2 digital inputs can be used to connect dry contacts that can then be monitored using the Open API. In addition, each input includes an S0 pulse counter for monitoring the consumption with a water meter, an electricity meter or a similar meter.

2+2 outputs

   Output

   Measurements

   Switching

   Max voltage / current

   Out 1, Out 2

   A, W, Wh, TPF, V, Hz

   Relay (ZCS)

   230V / 16A AC

   Out 3, Out 4

   -

   Relay

   230V / 2A AC
   48V / 2A DC



Electrical measurements supported at Out1, Out2

  • 2x Current [A]
  • 2x Consumption [kWh]
  • 2x Load [W]
  • 2x TPF (True Power Factor)
  • 2x Phase shift [-180...180°]
  • Voltage [V]
  • Frequency [Hz]
  • Measurement accuracy: better than 1%



Industrial product quality

The PowerDIN 4PZ LAN/WiFi dual electricity meter is intended for professional use.

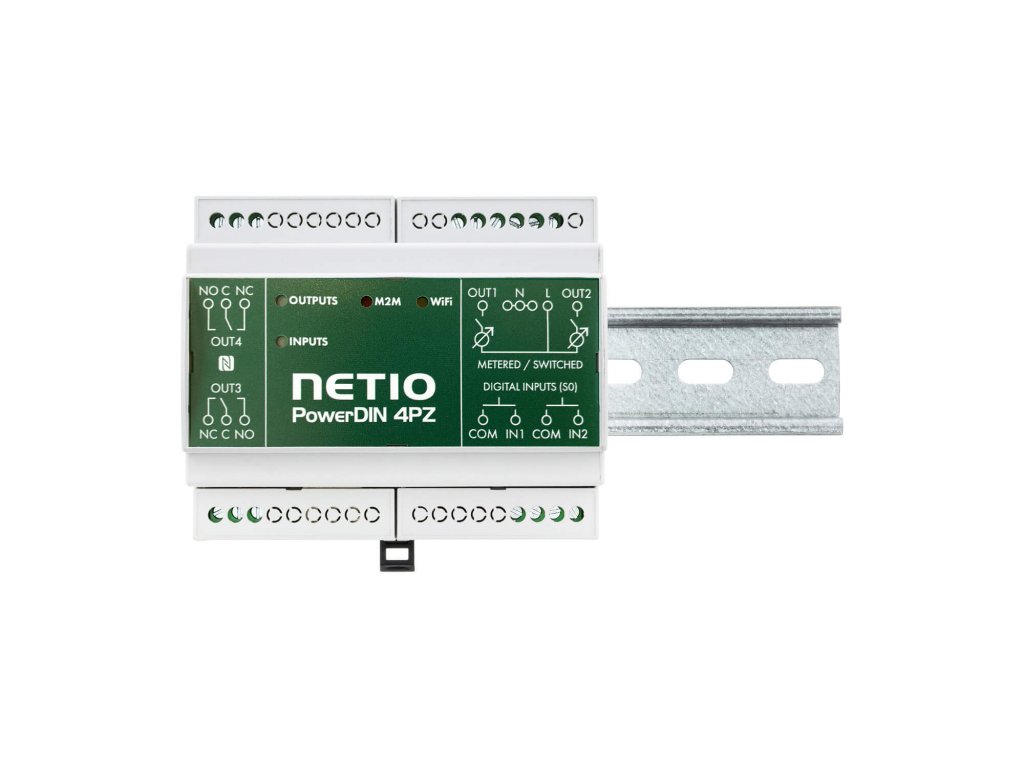

  • Designed for mounting on a DIN rail (6 units).
  • 2-point factory calibrated (temperature compensation).
  • PowerUp state – the state of the outputs after the device is powered up is configurable (On/Off/Last).
  • ZCS – for switching an appliance on and off more frequently than a few times a day, ZCS (Zero Current Switching) support becomes important in the long term. ZCS makes sure that the relays at outputs 1 and 2 switch when the immediate current is zero.
  • IOC function (Independent Output Control) – states of outputs are not affected by LAN connection failures, network layer restarts, or firmware upgrades.



Scheduler function (calendar)

With the Scheduler function, each output can be switched on and off automatically at pre-defined times and days-of-week. A schedule is useful for saving energy and periodic restarts of other equipment.





NFC Config = quick WiFi connection setup

With the NETIO Mobile2 app and a NFC-capable phone, the product can be connected to a WiFi network in 60 seconds.

For WiFi setup without NFC, the product features a built-in WiFi AP as well as a wizard to guide you through the selection of a WiFi network and configuring the connection.



Specifications

  • LAN (RJ45): Yes
  • WiFi: Yes
  • Web: Built-in web server
  • Online demo: Yes - http://powerdin-4pz.netio-products.com:22888/  (login: demo/demo)
  • FW upgrade: Yes - web
  • Mobile app: NETIO Mobile2 (Android)
  • Installation without a Cloud connection: Yes
  • Control button: Yes (under the panel)
  • Service: NETIO Cloud (for a fee)
  • Open API (M2M protocols)
    • Modbus/TCP
    • MQTT-flex
    • Telnet
    • http URL API
    • http JSON
    • http XML
    • SNMP v1



  • Lua support: No
  • Scheduler function: Yes (3Q 2020)
  • Sending e-mails: No



  • Power input: Terminal block (Ø 2.5mm), 100-240VAC / max 16A
  • Power output: Terminal block (Ø 2.5mm)
  • Metered outputs: 2 channels
  • Digital Outputs: 4
  • Digital Inputs: 2 + S0 counter (4 bytes)



  • Internal consumption: Max 2 W
  • SPD – surge protection: Yes, type 3
  • Switching element: Relay (Out 1, 2: SPST-NO)
  • ZCS (Zero Current Switching): Yes (outputs 1, 2)
  • IOC (output state independent from FW updates): Yes
  • PowerUp state of outputs: On / Off / LAST state



  • Mechanical characteristics: 106 x 91 x 62 mm - 6M (SU) DIN
  • Protection: IP20
  • Sound output: No
  • Temperature range: -20°C to +55°C



More information about this product:
https://www.netio-products.com/en/device/powerdin-4pz

Additional parameters

Category: NETIO power sockets
Warranty: 2 years
Weight: 0.3 kg
? Protocols (M2M API): REST (XML, JSON, URL API), Modbus/TCP, Telnet, MQTT, SNMP
? Lua programmable: No
? Power measurement: With measurement
? Network: Wi-Fi, LAN (Ethernet)
? NETIO Cloud: Yes
? Power socket type: Terminal block (Type Z)
