Product detailed description

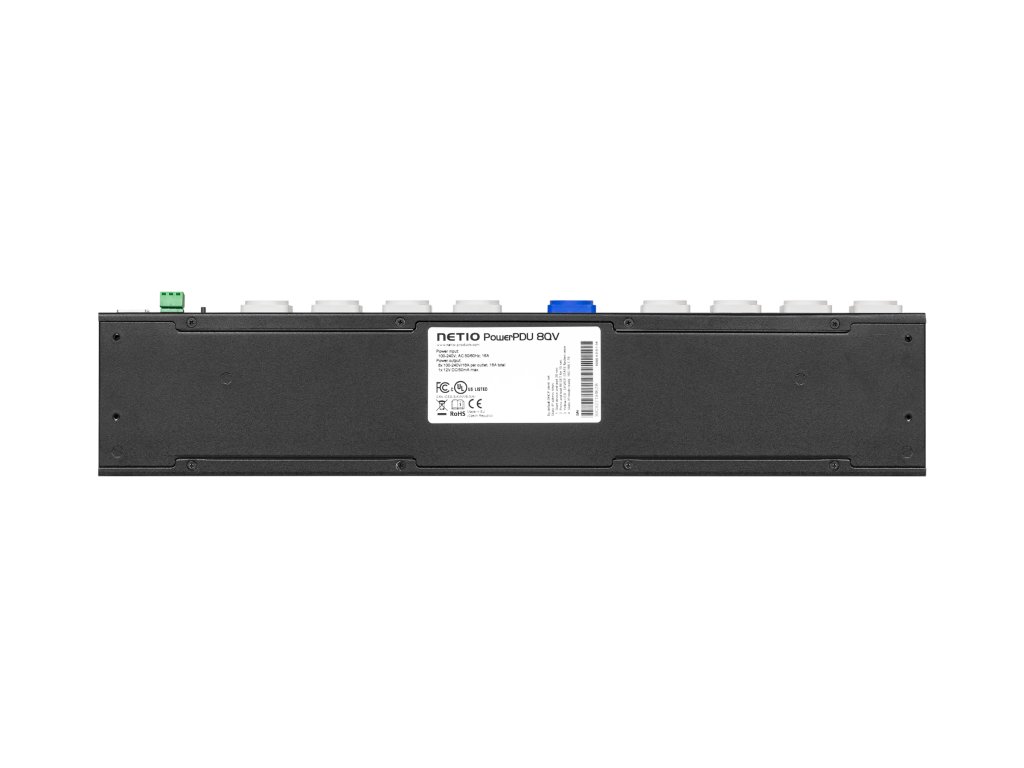

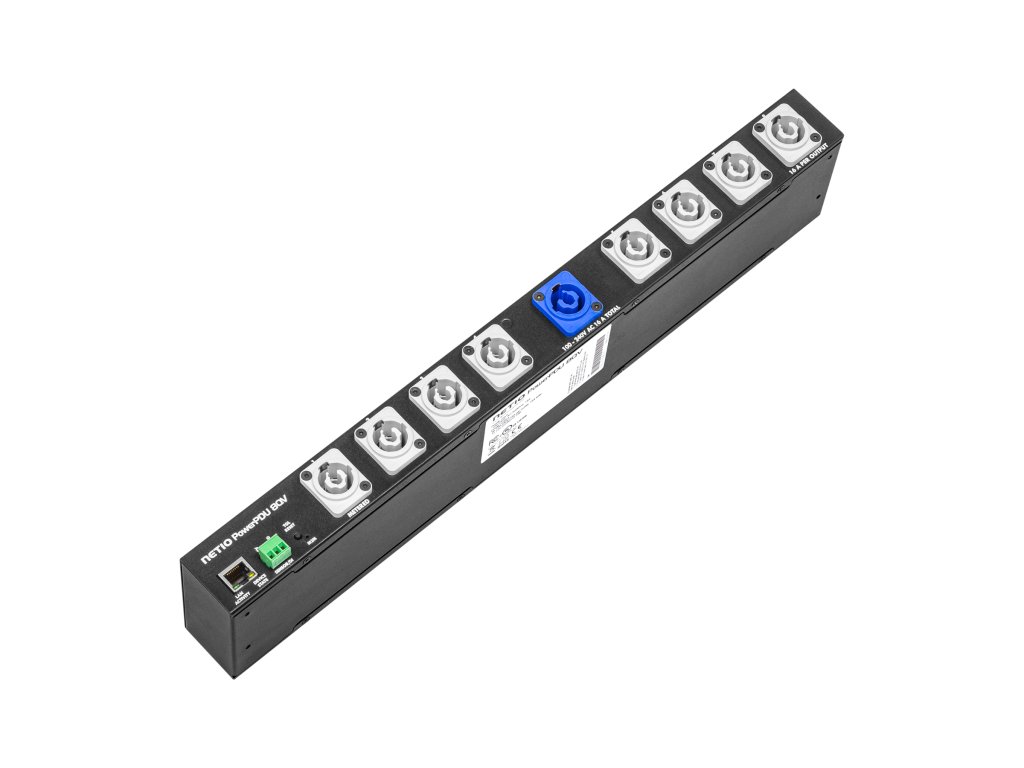

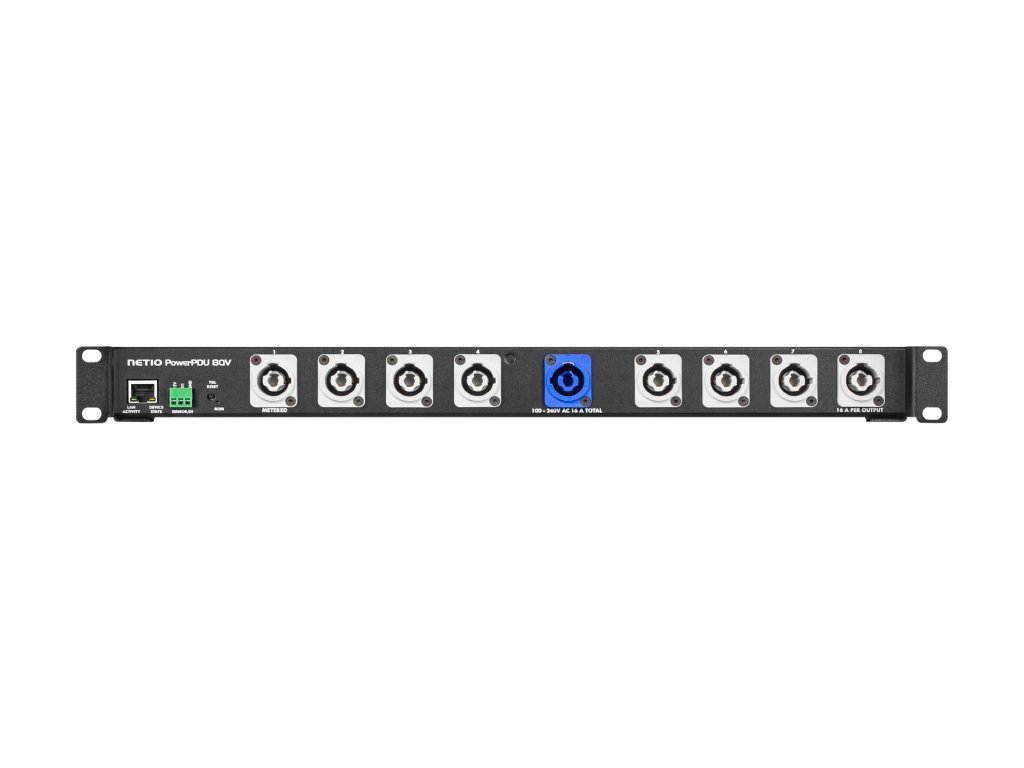

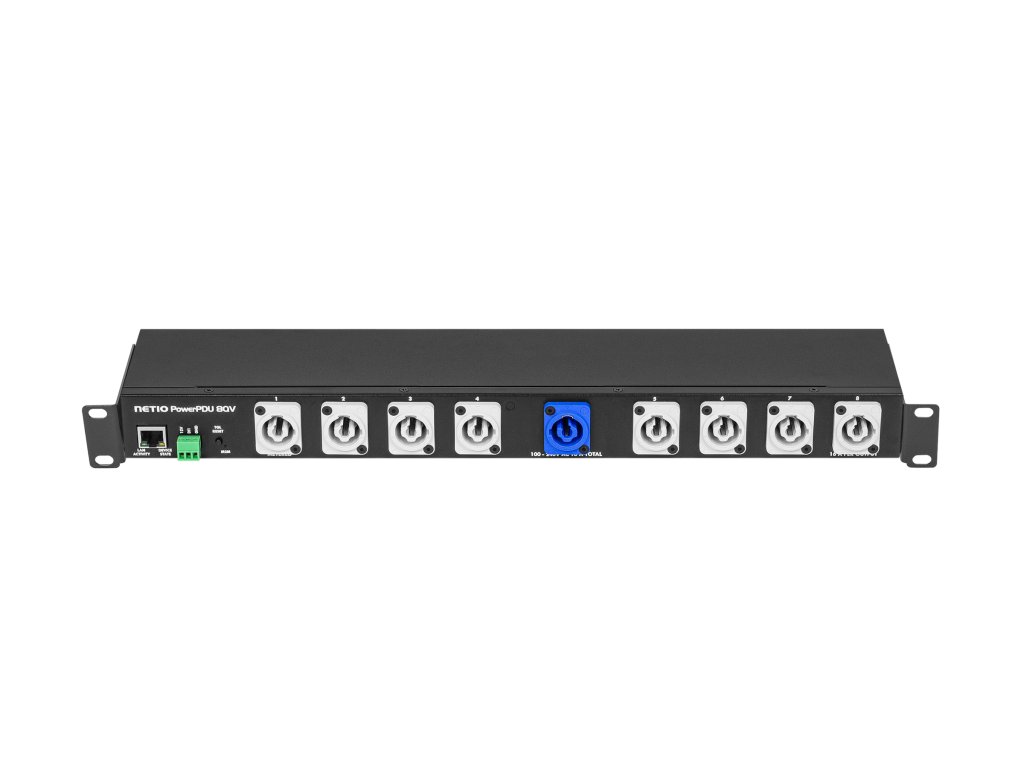

NETIO PowerPDU 8QV is a PDU (Power Distribution Unit) with eight power outputs (8x powerCON) controlled and metered over a LAN. It fits into a 19” cabinet (1U). Each output can be controlled independently.

NETIO PowerPDU 8QV uses lockable powerCON connectors to ensure reliable connection at all times.

Benefits of powerCON Outputs

The powerCON outputs are a key feature of the PowerPDU 8QV, offering several advantages:

1. Secure, High-Current Connections: powerCON is designed for high-current, secure power connections, ensuring a safe, reliable, and durable output, ideal for professional environments.
2. Industrial-grade Safety: powerCON’s locking mechanism ensures a secure connection, reducing the risk of accidental disconnections or electrical issues in demanding setups.
3. Better for AV and Pro-Installations: powerCON is commonly used in professional audio-visual installations, making it ideal for AV systems, media centers, and complex professional setups.

PowerPDU 8QV supports two channels for electrical measurements:

1. the PDU as a whole (all outputs combined), and
2. the first output separately (Output1).

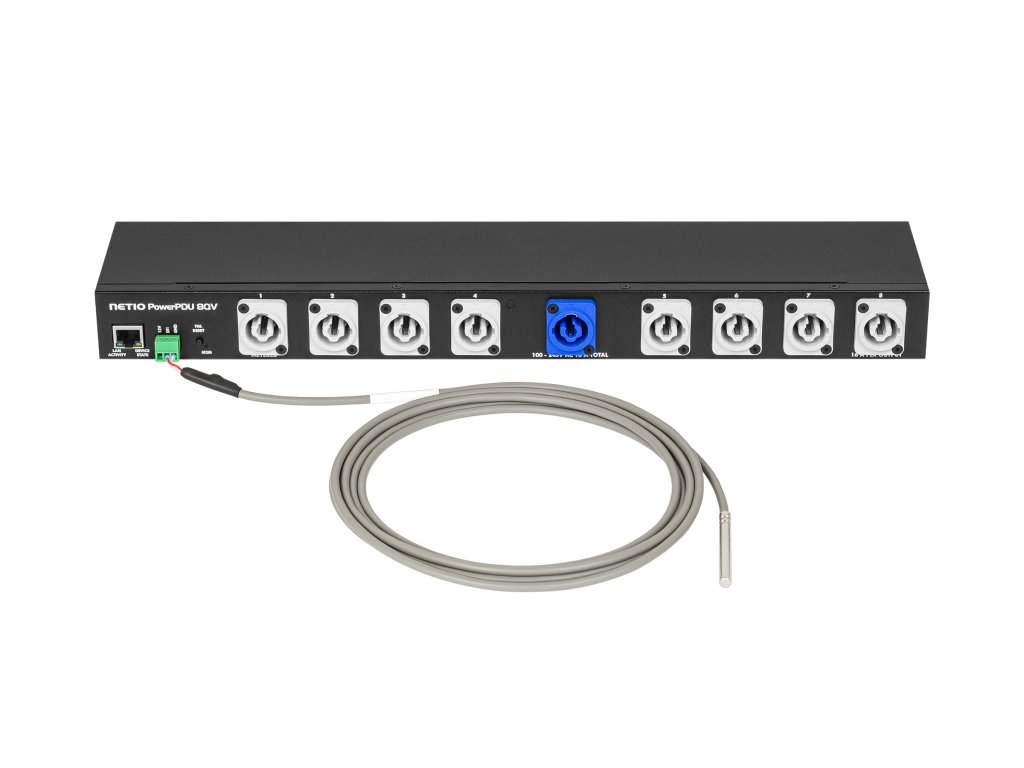

A digital input (DI) can be used to control the outputs or read S0 pulses (electricity meter output).

The device’s WEB interface can be used to control the outputs, configure the Scheduler for each output, and so on.

With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service is provided for a fee, features SSL security and its servers are located in Europe.

Open API enables integration into third-party systems using a wide range of protocols (JSON, Modbus/TCP, SNMP, MQTT, Telnet, ...).

NETIO PowerPDU 8QV can be controlled from multimedia AV systems (Atlona, Q-SYS, Crestron, SKAARHOJ …)

 Video Introduction

Where the PowerPDU 8QV Makes a Difference:

• Broadcast & AV Studios – Lockable power prevents accidental shutdowns of cameras, mixers, and lighting
• LED Walls & Live Events – Reliable, controlled power-up ensures stable operation and prevents surge damage
• IT & Media Racks – Individual outlet control for servers, amplifiers, and networking gear
• Industrial & Mission-Critical Installations – Secure, remote-controlled power for high-reliability environments

The NETIO PowerPDU 8QV isn’t just about power—it’s about locking in safety, stability, and control for professionals who can’t afford failure.

Features

Open API

For Open API communication, M2M protocol can be chosen from among the following:

• SNMP v1 / v2
• SNMP v3
• MQTT-flex (plain / TLS)
• Modbus/TCP
• Telnet
• URL API (http get)
• JSON over HTTP(s)
• XML over HTTP(s)
• HTTP(s) Push JSON
• HTTP(s) Push XML

The SNMP protocol can be always used in parallel to other APIs.

Documentation for the protocols is available at the manufacturer’s website. The ANxx Application Notes provide useful deployment guidance.

SCHEDULER

Scheduler (weekly timer) can switch each output on/off at pre-defined times and days of week.

POWERUP SEQUENCE

PowerUp sequence delays the switching on of each output by a defined delay after the device is powered up.

ELECTRICAL MEASUREMENTS

Electrical measurements for two channels: the PDU as a whole, and output 1 separately (All Outputs + 1). For both channels, the direction is taken into account when metering: there is a kWh counter for consumed energy and another kWh counter for reverse (supplied) energy.

DIGITAL INPUT

The digital input (DI) can be connected to a button (dry contact) or used as a S0 pulse counter for reading energy consumption from an external electricity meter

Technical Specifications

• LAN (RJ45): Yes
• WiFi: No
• Web: Built-in web server
• Online demo: Yes
• FW upgrade: Yes - web
• Mobile app: NETIO Mobile 2 (Android & iOS)
• Cloud connection needed for installation: No
• Control button for each output: No

• Cloud service: NETIO Cloud (for a fee, SSL security)
• M2M API protocols:
  • JSON over HTTP(s) (default)
  • MQTT-flex (MQTT extension, supports SSL)
  • SNMP v1
  • SNMP v3
  • Modbus/TCP
  • XML over HTTP(s)
  • URL API (http get) (control of outputs only)
  • Telnet (control of outputs only, backwards compatible with KSHELL)
  • HTTP(s) Push JSON
  • HTTP(s) Push XML

• Lua support: No
• Scheduler function (weekly calendar): Yes
• IP WatchDog function: Yes
• Sending e-mails: No

• Power input: powerCON blue, 100/240V (max. 16A)
• Mechanical power switch: No
• Power output: 8x powerCON grey (max 16A / output)
• Number of controlled outputs: 8
• LED indication of output states: No
• Electrical measurements: Yes
• Number of channels for measurements: 2 (All Outputs + output 1)
• Parameters measured for the whole device: Grid frequency [Hz], Voltage [V], Total current [A], Total power input [W], Overall TruePF [-]), Overall phase shift [°] / Total Energy [Wh] / Total reverse energy [Wh],
• Parameters measured for output 1: Current [A] / Power input [W] / TruePF [-] / Phase shift [°] / Energy [Wh] / Reverse energy [Wh]

• Accuracy of electrical measurements: better than 1% (in the entire temperature range)
• Internal consumption: 1-3 W
• Digital inputs (DI): 1x input (contact) + S0 counter (4 bytes)
• Power for DI: 12V power (Max 50mA)

• SPD – surge protection: Yes, type 3 (125J (8/20us))
• Switching element: relay SPST-NO, ZVS
• ZVS (Zero Voltage Switching): Yes
• IOC (output state independent from FW updates): Yes
• PowerUp state of outputs: On / Off / LAST state

• Dimensions: 439 x 41 x 90 mm
• Mechanical mounting: 19“ (1U) rack mount
• Ingress protection: IP30
• Sound output: No

For more information: https://www.netio-products.com/en/device/powerpdu-8qv
